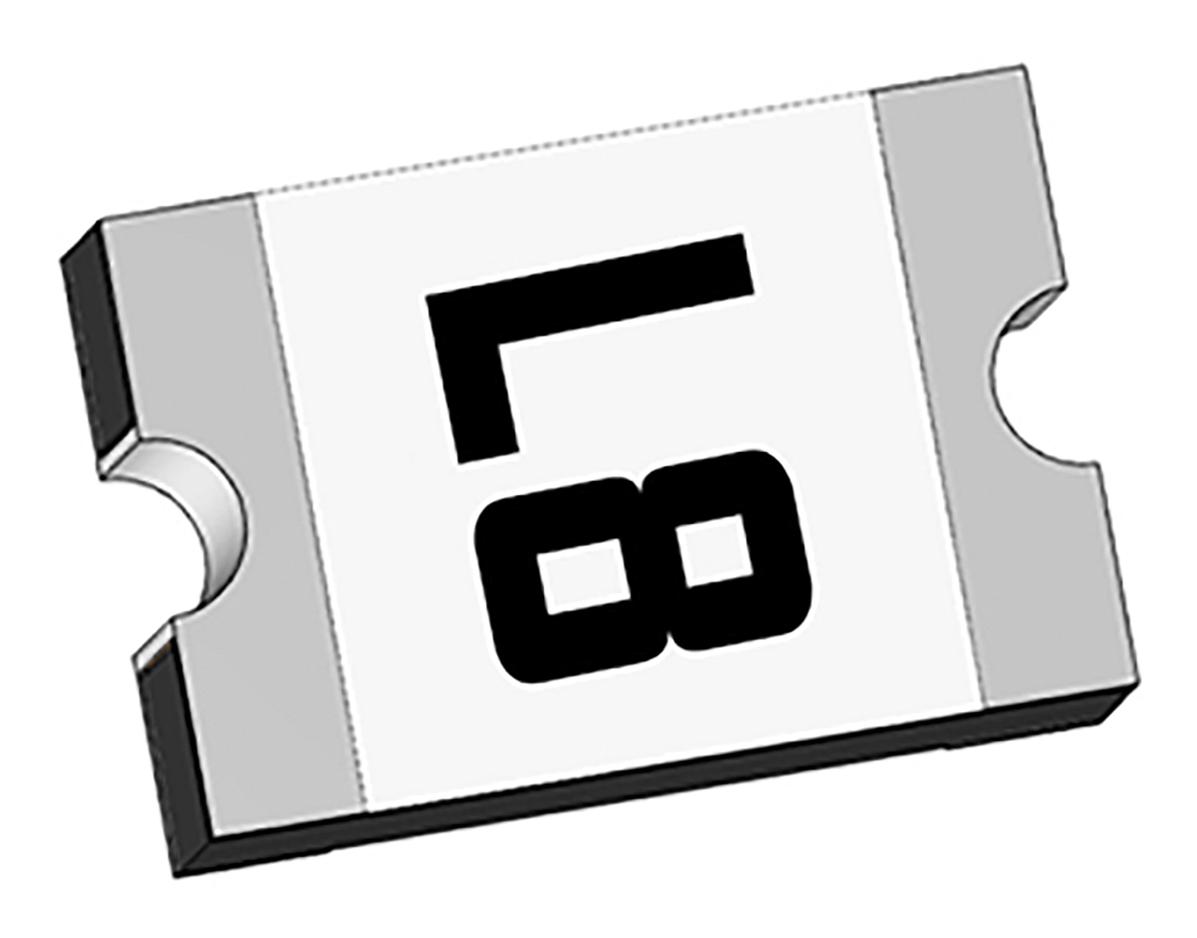

Eaton Bussmann PTSLR12066V300 SMD PTC Fuse
The PTSLR12066V300 is a low resistance surface-mount resettable fuse designed for quick response in overcurrent protection applications. With a maximum voltage of 6V and an Ihold current rating of 30A, it offers reliable performance for electronic devices such as data ports, micromotors, fans, medical equipment, and battery protection systems. Its compact 1206 footprint ensures easy integration into various circuit board designs. Featuring UL and TUV safety approvals, it withstands overcurrent conditions with high endurance, making it suitable for diverse electronic protection needs.
Eaton Bussmann PTSLR12066V300 SMD PTC Fuse Specifications:
- Maximum voltage: 6V
- Ihold current rating: 30A
- Resistance: 0.026Ω
- Trip current: 35A
- Trip time: 8 seconds
- Storage temperature: -10°C to +40°C
- Operating temperature: -40°C to +85°C (with derating)
- Dimensions: 3.0 mm x 1.55 mm
- Safety approvals: UL Recognized, TUV Certified
- Soldering profile: Peak temperature 250°C, 10 seconds max
- Humidity: <75% RH
- Thermal derating: Derates at high temperatures
- Endurance: 50 cycles at 120% Imax
Buy the Eaton Series PTSLR1206 Low Resistance SMD PTC Fuse: 6V 30A
Enhance your electronic protection with the Eaton Series PTSLR1206 low resistance SMD PTC fuse. Featuring a maximum voltage of 6V and an Ihold current of 30A, it offers quick response and high endurance. Its compact 1206 footprint makes it perfect for space-constrained circuit boards, ensuring reliable overcurrent protection for data ports, medical devices, battery systems, and more. UL and TUV certified, this fuse guarantees safety, durability, and performance for critical electronic applications. Buy online now for fast, trusted delivery.
Order your Eaton Series PTSLR1206 6V 30A low resistance surface-mount PTC fuse today and ensure reliable overcurrent protection for your electronic projects.
Frequently Asked Questions
Where can I buy Eaton Bussmann PTSLR12066V300?
You can click on the BUY or RFQ button to purchase PTSLR12066V300 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part PTSLR12066V300?
You can download the PTSLR12066V300 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of PTSLR12066V300?
Eaton Bussmann
