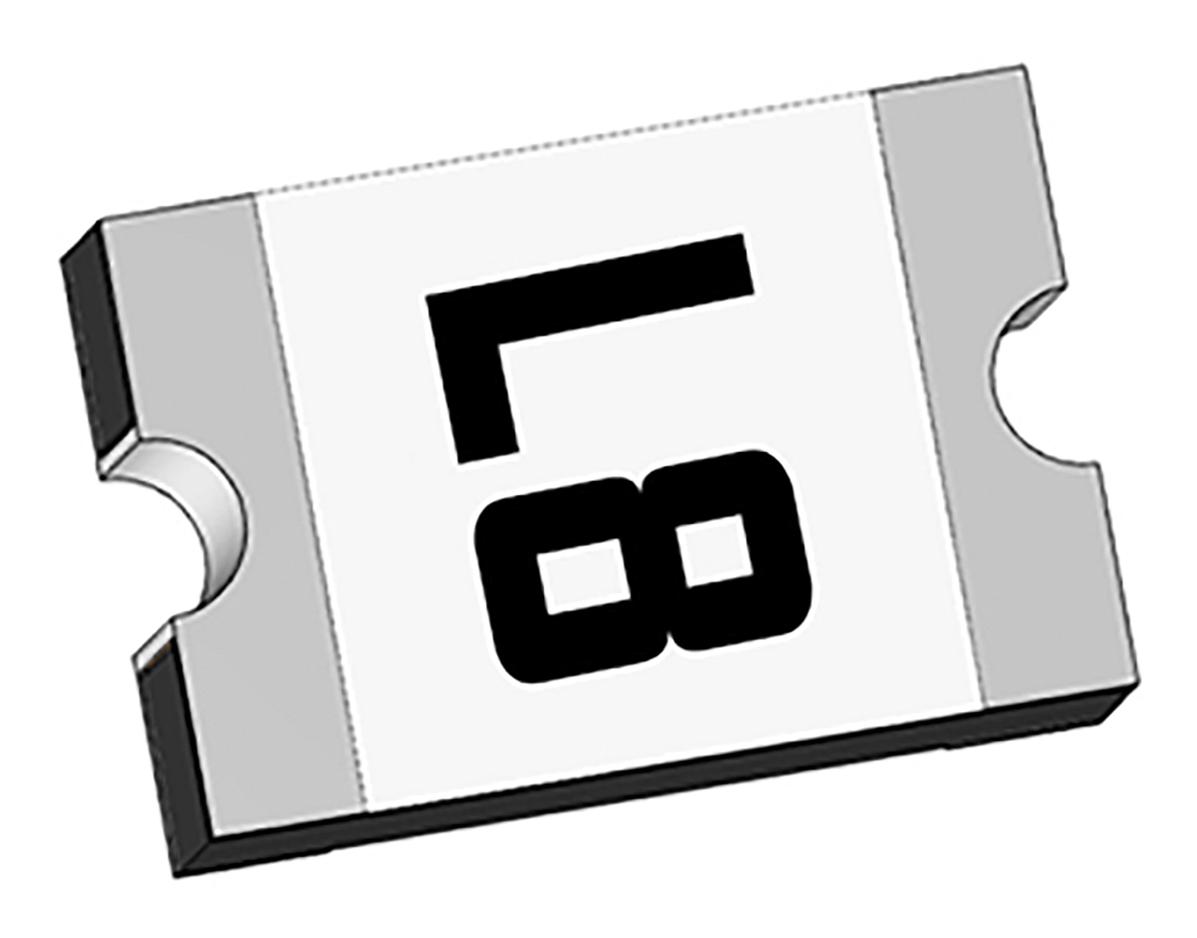

Eaton Bussmann PTSLR12066V400 Low Resistance SMD PTC Fuse
The PTSLR1206 is a surface-mount, resettable PTC fuse with low resistance, designed for applications like data ports, micro-motors, fans, low voltage testing, medical equipment, USB protection, secondary Li-ion battery protection, game consoles, and charging connections. It features a compact 1206 footprint, voltage rating of 6 V, and current ratings from 0.75 A to 5.00 A. With fast trip times and UL/CSA/TUV safety approvals, this fuse offers reliable overcurrent protection suitable for tight electronic spaces.
Eaton Bussmann PTSLR12066V400 Low Resistance SMD PTC Fuse Specifications:
- Voltage rating: 6 V
- Current ratings: 0.75 A to 5.00 A
- Resistance: as low as 0.013 Ω
- Package: 1206 (3216 metric)
- Temperature range: -40°C to +85°C (derating applies)
- Storage temperature: -10°C to +40°C
- Dimensions: Typical length 3.0 to 3.5 mm, width 1.5 to 1.8 mm
- Response time: Fast trip time, current-dependent
- Certifications: UL Recognized, CSA, TUV
- Power dissipation: Up to 1.5 W at rated current
- Operational safety: Overload endurance and humidity resistance
- Solder profile: Compatible with EN 61760-1:2006 standard reflow soldering
Buy the Eaton Series PTSLR1206 Low Resistance Fuses: 6V 0.75A-5A
Purchase the Eaton Series PTSLR1206 low resistance SMD PTC fuse online today for your electronic protection needs. With voltage rating of 6 V and current ratings from 0.75A to 5.00 A, it is ideal for data ports, micro-motors, fans, and medical equipment. Its compact 1206 footprint allows easy integration into tight spaces. Certified by UL, CSA, and TUV, this fuse offers fast trip response times, high reliability, and safety. Order now and enhance your electronic circuit protection with Eaton quality.
Order your Eaton Series PTSLR1206 low resistance surface-mount fuse today and ensure reliable circuit protection for your electronic projects.
Frequently Asked Questions
Where can I buy Eaton Bussmann PTSLR12066V400?
You can click on the BUY or RFQ button to purchase PTSLR12066V400 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part PTSLR12066V400?
You can download the PTSLR12066V400 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of PTSLR12066V400?
Eaton Bussmann
