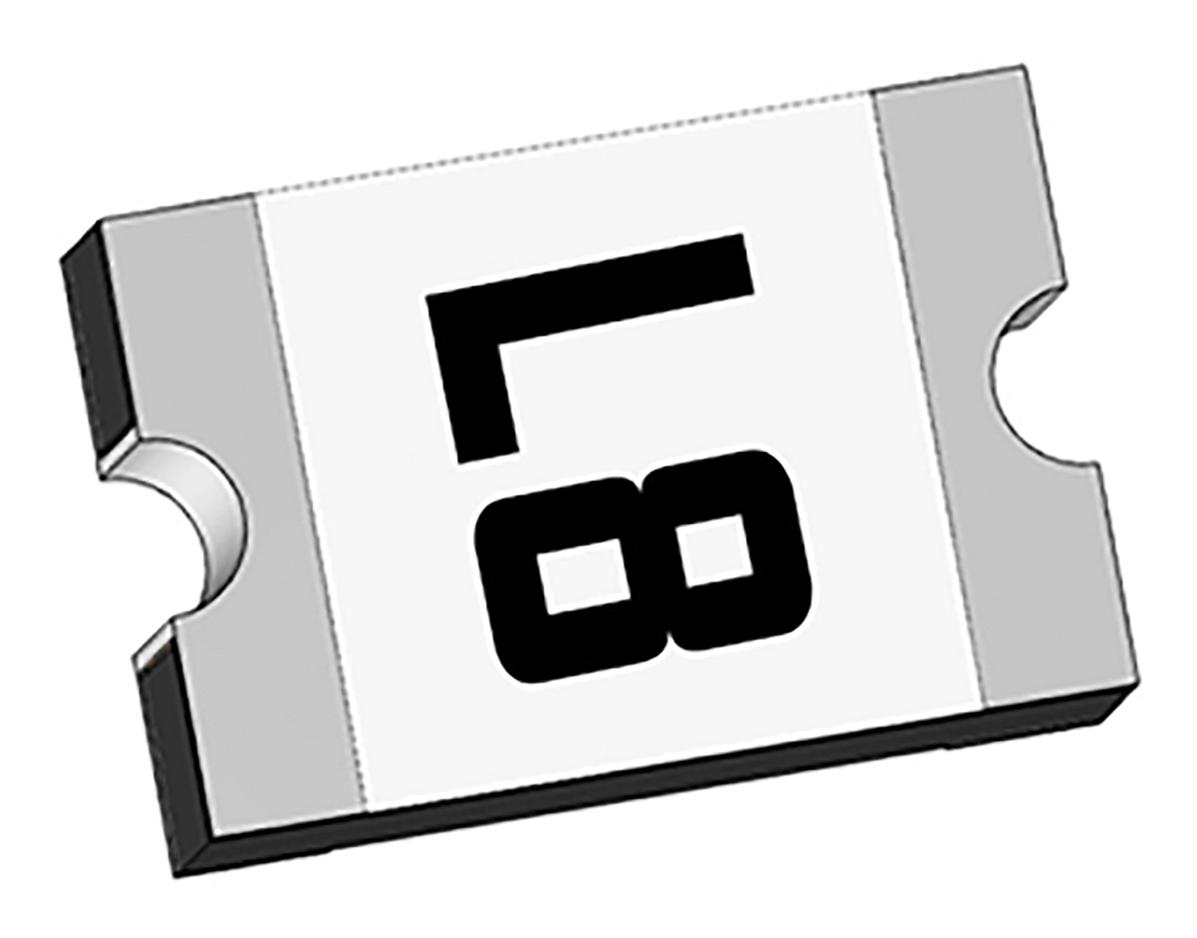

Eaton Bussmann PTSLR12066V500 Low Resistance SMD PTC Fuse
The PTSLR1206 series are low resistance surface-mount resettable fuse with a compact 1206 footprint, rated at 6 V and currents from 0.75 A to 5.00 A. These PTC fuses provide rapid trip response, ensuring reliable overcurrent protection for electronic circuits such as data ports, micromotors, fans, medical equipment, and USB protection. They feature UL and TUV safety approvals, have low resistance values, and are suitable for space-constrained applications. Designed for quick recovery after fault conditions, these fuses are ideal for safeguarding low voltage and portable devices.
Eaton Bussmann PTSLR12066V500 Low Resistance SMD PTC Fuse Specifications:
- Voltage rating: 6 V
- Current ratings: 0.75 A to 5.00 A
- Resistance: as low as 0.013 Ω
- Time-to-trip: approximately 8 seconds at rated current
- Operating temperature: -40°C to +85°C (with derating)
- Storage temperature: -10°C to +40°C
- Dimensions: 3.0 mm x 1.5 mm x 0.85 mm
- UL and TUV recognized safety standards
- Storage humidity: <75%
- Soldering profile compliant with EN 61760-1:2006 standards
- Reliability: Overload endurance at 120% Imax for 50 cycles
Buy the Eaton Series PTSLR1206 Low Resistance SMD PTC Fuse: PTSLR12066V500
Secure your electronic projects with the Eaton Series PTSLR1206 low resistance SMD PTC fuse. Rated at 6 V and available in current ratings from 0.75 A to 5.00 A, these compact fuses provide fast, reliable overcurrent protection for data ports, medical devices, and portable electronics. UL and TUV recognized, they feature low resistance for minimal power loss and rapid trip response to protect delicate components. Easy to install and suitable for automated assembly, these fuses are essential for ensuring device safety and durability in space-constrained applications.
Order your Eaton Series PTSLR12066V500 low resistance SMD PTC fuse today and ensure your electronic devices are protected with reliable, space-efficient circuit protection.
Frequently Asked Questions
Where can I buy Eaton Bussmann PTSLR12066V500?
You can click on the BUY or RFQ button to purchase PTSLR12066V500 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part PTSLR12066V500?
You can download the PTSLR12066V500 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of PTSLR12066V500?
Eaton Bussmann
