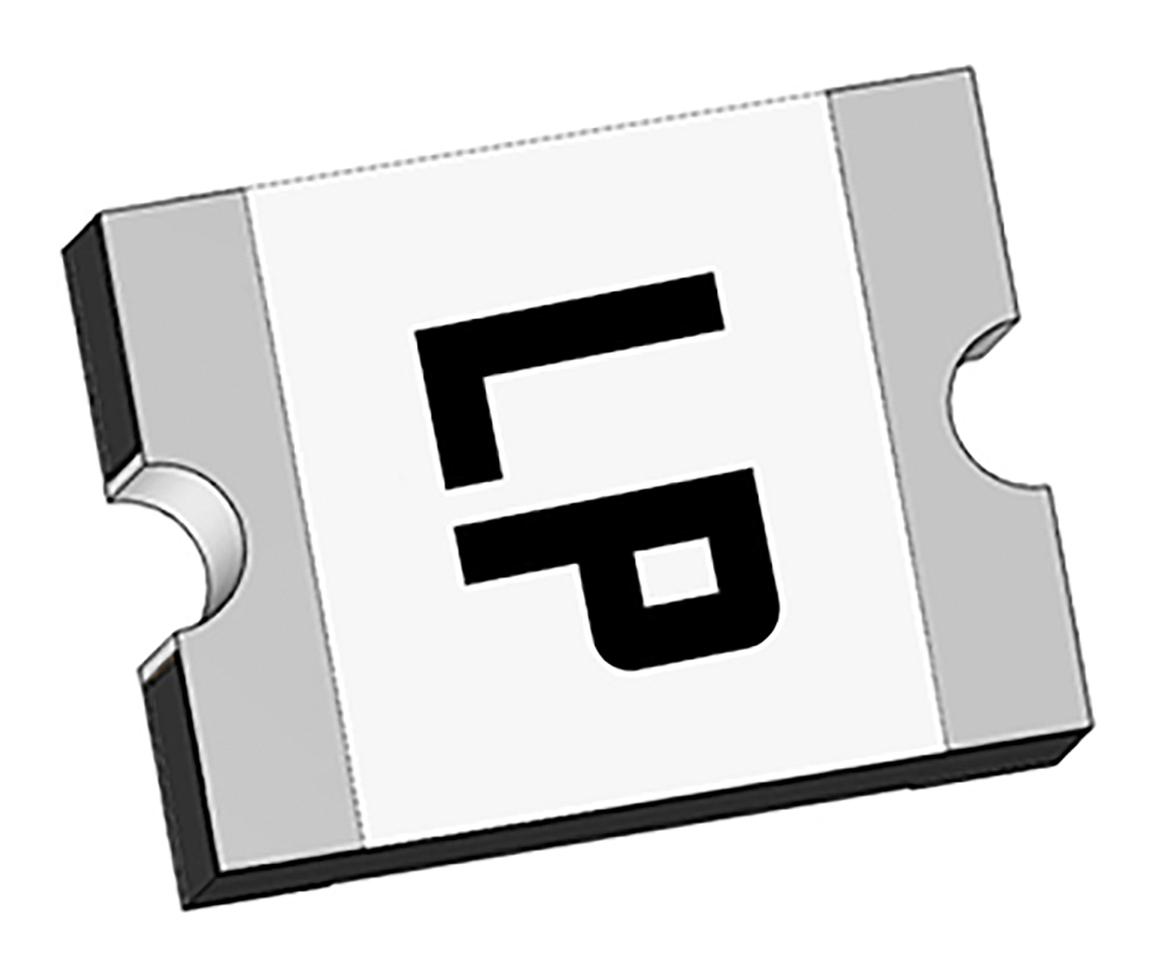

Eaton Bussmann PTSLR12106V175 Low Resistance PTC Fuse
The PTSLR1210 series are low resistance surface-mount resettable PTC fuses designed for versatile applications such as micromotors, fans, low voltage measurement equipment, PC medical devices, USB protection, battery protection, and gaming consoles. These compact 1210 footprint fuses offer a voltage rating of 6 V and current ratings from 1.75 A to 5.00 A, providing fast trip times, low resistance, and high reliability. They comply with UL and TUV safety standards, making them suitable for circuit protection in various electronics.
Eaton Bussmann PTSLR12106V175 Low Resistance PTC Fuse Specifications:
- Voltage rating: 6 V
- Current ratings: from 1.75 A to 5.00 A
- Maximum fault current: 50 A
- Hold current: from 1.75 A to 5.00 A depending on model
- Resistance: approximately 0.006 Ω to 0.002 Ω at room temperature
- Trip time: varies from 8 to 80 seconds depending on current
- Operating temperature: -40°C to +85°C with derating
- Storage temperature: -10°C to +40°C
- Certification: UL Recognized, TUV Approved
- Package: Surface mount, 1210 size (3.2 mm x 2.5 mm)
- Solder profile compliance: EN 61760-1:2006, suitable for SnPb and lead-free soldering techniques
Buy the Eaton Series PTC Fuse: PTSLR1210-6V175
Buy Eaton low resistance SMD PTC fuse PTSLR1210-6V175 today for reliable circuit protection in medical devices, gaming consoles, and industrial electronics. Designed with a 6V voltage rating and current ratings from 1.75A to 5A, these compact fuses feature fast trip times, low resistance, and compliance with UL and TUV safety standards. Their surface-mount design ensures ease of installation and space-saving integration. Perfect for protecting sensitive electronics against overcurrent conditions, this fuse provides durability, safety, and dependable performance for your electronic projects.
Get Eaton PTSLR1210-6V175 today—built for precision and long-lasting durability in circuit protection.
Frequently Asked Questions
Where can I buy Eaton Bussmann PTSLR12106V175?
You can click on the BUY or RFQ button to purchase PTSLR12106V175 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part PTSLR12106V175?
You can download the PTSLR12106V175 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of PTSLR12106V175?
Eaton Bussmann
