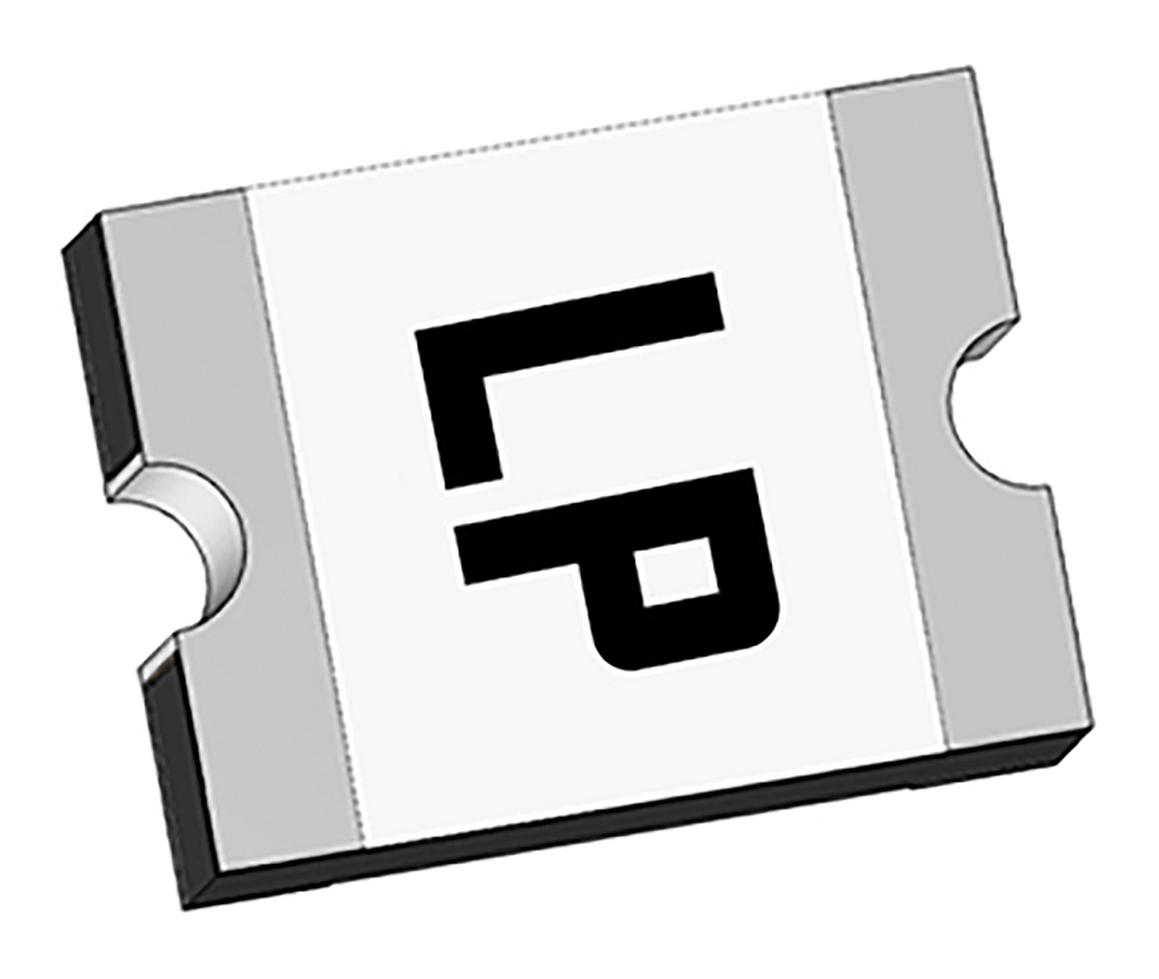

Eaton Bussmann PTSLR12106V260 Low Resistance PTC Fuse
The low resistance surface-mount PTC fuse offers reliable overcurrent protection for electronic devices. With a compact 1210 footprint, it features a voltage rating of 6V and current ratings from 1.75A to 5.00A. This resettable fuse quickly trips under overload conditions, ensuring circuit safety. Ideal for applications like USB protection, medical equipment, and gaming consoles, it complies with UL and TUV standards, with robust temperature and humidity ratings. Its low resistance (as low as 0.003 Ω) minimizes energy loss and enhances power efficiency.
Eaton Bussmann PTSLR12106V260 Low Resistance PTC Fuse Specifications:
- Voltage rating: 6 V
- Current ratings: from 1.75 A to 5.00 A
- Maximum fault current: 50 A
- Resistance: as low as 0.003 Ω
- Trip current: 1.75 A to 5.00 A
- Maximum continuous voltage: 6 V
- Operating temperature: -40°C to +85°C (derating applied)
- Storage temperature: -10°C to +40°C
- Dimensions: 3.00 mm x 3.43 mm x 0.70 mm
- Surface mount design with 1210 footprint
- Temperature derating: at elevated temperatures
- Compliance: UL 1434, TUV R 50455924
Buy the Eaton Series PTSLR1210 Low Resistance PTC Fuse: 6V 1.75A-5A
Get the Eaton Series PTSLR1210 low resistance surface-mount PTC fuse online today. With a compact 1210 footprint, it offers excellent overload protection, low resistance, and reliable resettable performance. Suitable for USB ports, medical devices, and gaming equipment, this UL and TUV certified fuse ensures safety and efficiency in your electronics. Easy to install, it withstands operating temperatures up to 85°C with derating and is supplied in tape and reel packaging for convenient automation. Buy now for dependable protection and optimized circuit performance.
Order your Eaton Series PTSLR1210 low resistance PTC fuse today and ensure reliable circuit protection for your electronic projects.
