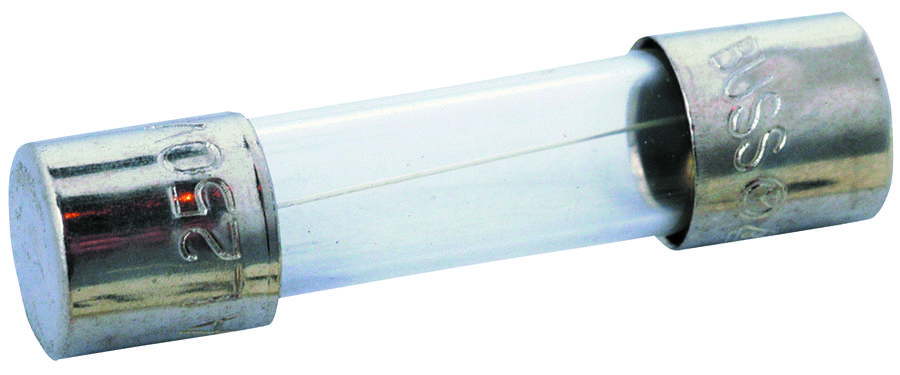

Eaton Bussmann S506315R Slow Blow Fuse
This is a slow blow fuse with a voltage rating of 250 VAC and a current rating of 3.15 Amps. It features a cylindrical package measuring 5mm by 20mm and is mounted using a holder. Designed for electronic circuits, it provides reliable overcurrent protection with high breaking capacity and conforms to IEC standards. The fuse is suitable for power supplies, adapters, and other electronic applications requiring durable, fast-acting or time-delay performance. It employs glass tube construction with nickel-plated brass endcaps for robust operation in various environments.
Eaton Bussmann S506315R Slow Blow Fuse Specifications:
- Dimensions: 5mm x 20mm (0.197” x 0.788”)
- Construction: Glass tube with nickel-plated brass endcaps
- Voltage Ratings: 250VAC, 32Vdc (self certified)
- Current Range: 3.15A
- IR (Interrupting Rating): 35A @ 250Vac
- Agency approvals: CE, UL Listed, CSA Certification
- Features: Time-delay, high breaking capacity, conformance IEC 60127-2
- Applications: Power supplies, adapters, electronic circuits
Buy the Bussmann 3.15A – Reliable Slow Blow Fuse for Industrial Applications
Experience the trusted protection of Bussmann slow blow fuse designed for electronic circuits and power supplies. Featuring 250VAC ratings and 5mm x 20mm size, this fuse offers reliable, high-capacity overcurrent protection suitable for industrial environments. Crafted from glass with sturdy nickel-plated brass endcaps, it ensures durability and safety. Ideal for applications requiring fast-response or time-delay performance, this fuse conforms to IEC standards, providing excellent reliability, high breaking capacity, and easy integration into electronic and industrial systems. Buy Bussmann fuse online now for assured performance.
Get Bussmann 3.15A slow blow fuse today—built for precision and long-lasting durability in electronic power supply protection.
Frequently Asked Questions
Where can I buy Eaton Bussmann S506315R?
You can click on the BUY or RFQ button to purchase S506315R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part S506315R?
You can download the S506315R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of S506315R?
Eaton Bussmann
