Eaton Bussmann SR55AAP Subminiature Fuse

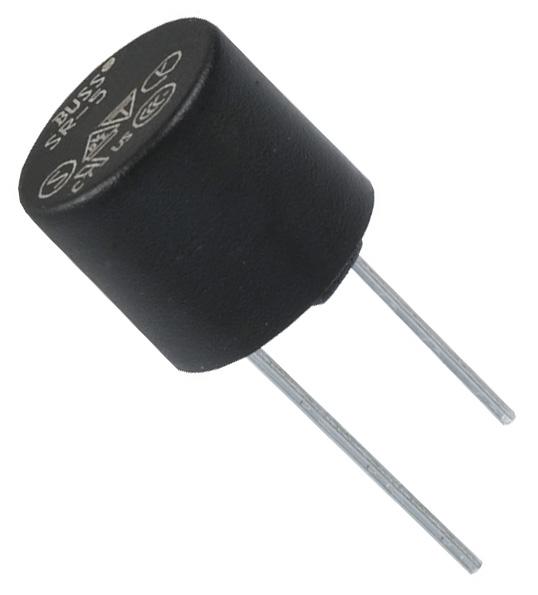

This is a slow blow, time lag fuse with a voltage rating of 250 VAC and a current rating of 5 Amps. It features a radial package or case, measures 8.50mm by 7.60mm, and is designed for through-hole mounting. The fuse provides reliable overcurrent protection, withstands high inrush currents, and is suitable for PCB or socket installation. Certified by multiple international agencies, it offers consistent performance in various electrical applications, including industrial control, consumer electronics, and power supplies, ensuring safety and durability in demanding environments.
Eaton Bussmann SR55AAP Subminiature Fuse Specifications:
- Voltage rating: 250 VAC
- Current rating: 5 Amps
- Case dimensions: 8.50mm x 7.60mm
- Mounting: Through-hole
- Package: Radial
- Solderability: EIA-186-9E Method 9
- Operating temperature: -40°C to +85°C
- Soldering heat resistance: 260°C for 10 seconds max
- Agency approvals: cURus, VDE, SEMKO, CCC, CQC, EK-MARK, PSE
- High inrush current withstand capability
- Designed to IEC 60127-3 standards
- Compatible with leaded and lead-free reflow and wave soldering
- Mechanical durability: Meets MIL-STD-202F vibration standards
Buy the Buy Bussmann Slow Blow Fuse Part Number SR55AAP Online
Purchase the Bussmann SR55AAP subminiature fuse online today and experience dependable circuit protection. Its 5 Amp, 250 Volt rating, radial case design, and through-hole mounting make it ideal for a wide range of electronic and electrical applications. Engineered to meet rigorous industry standards and international certifications, this fuse offers high inrush withstand capability, durability against thermal and mechanical stress, and compatibility with lead-free soldering processes. Secure your electronic device's safety and performance now with this reliable, easy-to-install fuse.
Buy Bussmann SR55AAP fuse now and ensure reliable overcurrent protection with high inrush current withstand capability for your electrical systems.
Frequently Asked Questions
Where can I buy Eaton Bussmann SR55AAP?
You can click on the BUY or RFQ button to purchase SR55AAP from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part SR55AAP?
You can download the SR55AAP datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of SR55AAP?
Eaton Bussmann
