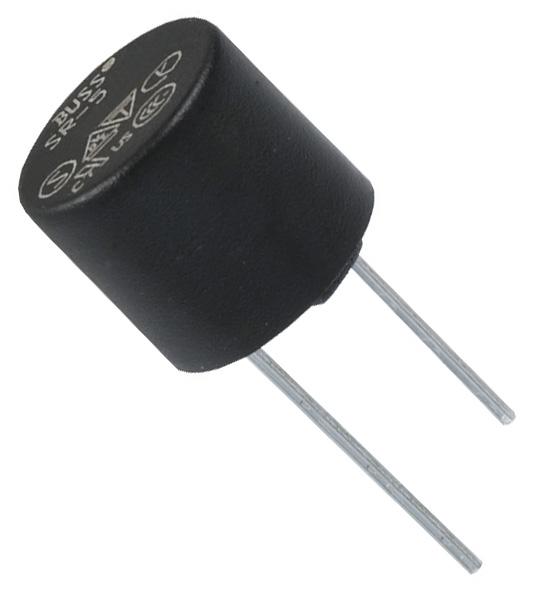

Eaton Bussmann SR5F5ABK Fast-Acting Fuse
This is a fast-acting fuse with a voltage rating of 250 VAC and a current rating of 5 Amps. It features a radial package and measures 8.50mm by 7.60mm. The fuse is designed for through-hole mounting, making it suitable for various electronic applications. It has UL-listed safety standards, high-temperature resistance up to 125°C, and solderability compliant with EIA-186-9E. Ideal for protecting electronic devices from overcurrents while minimizing PCB space. Suitable for primary and secondary circuit protection in consumer electronics, industrial systems, and control panels.
Eaton Bussmann SR5F5ABK Fast-Acting Fuse Specifications:
- Voltage Rating: 250 VAC
- Current Rating: 5A
- Dimensions: 8.50mm x 7.60mm
- Material: Plastic cap and base, tin-plated copper lead wire (0.6mm diameter)
- Operating temperature: -40°C to +125°C
- Solderability: EIA-186-9E Method 9
- High frequency vibration resistance: MIL-STD-202F, Method 201A
- Soldering heat resistance: 260°C for 10 sec max
- UL Listed: File E19180 JDXY1, JDYX7
- Protection against overcurrent in primary and secondary applications
- Designed for UL 248-14 standard
- Radial-leaded with optional socket mounting (RoHS compliant)
Buy the Buy Bussmann Fast-Acting Fuse Part Number SR5F5ABK Online
Secure your electronic projects with the Bussmann fast-acting fuse. Featuring a 250V AC rating and 5A current capacity, this fuse offers reliable overcurrent protection. Its compact 8.50mm by 7.60mm radial package is ideal for space-constrained applications, ensuring safety and performance. UL-listed and compliant with industry standards, it withstands high temperatures up to 125°C and soldering heat. Perfect for industrial, consumer electronics, and control systems requiring quick response to overcurrent conditions.
Buy Bussmann SR5F5ABK now and experience unmatched reliability and performance with high-temperature resistance, UL safety certification, and compact design.
Frequently Asked Questions
Where can I buy Eaton Bussmann SR5F5ABK?
You can click on the BUY or RFQ button to purchase SR5F5ABK from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part SR5F5ABK?
You can download the SR5F5ABK datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of SR5F5ABK?
Eaton Bussmann
