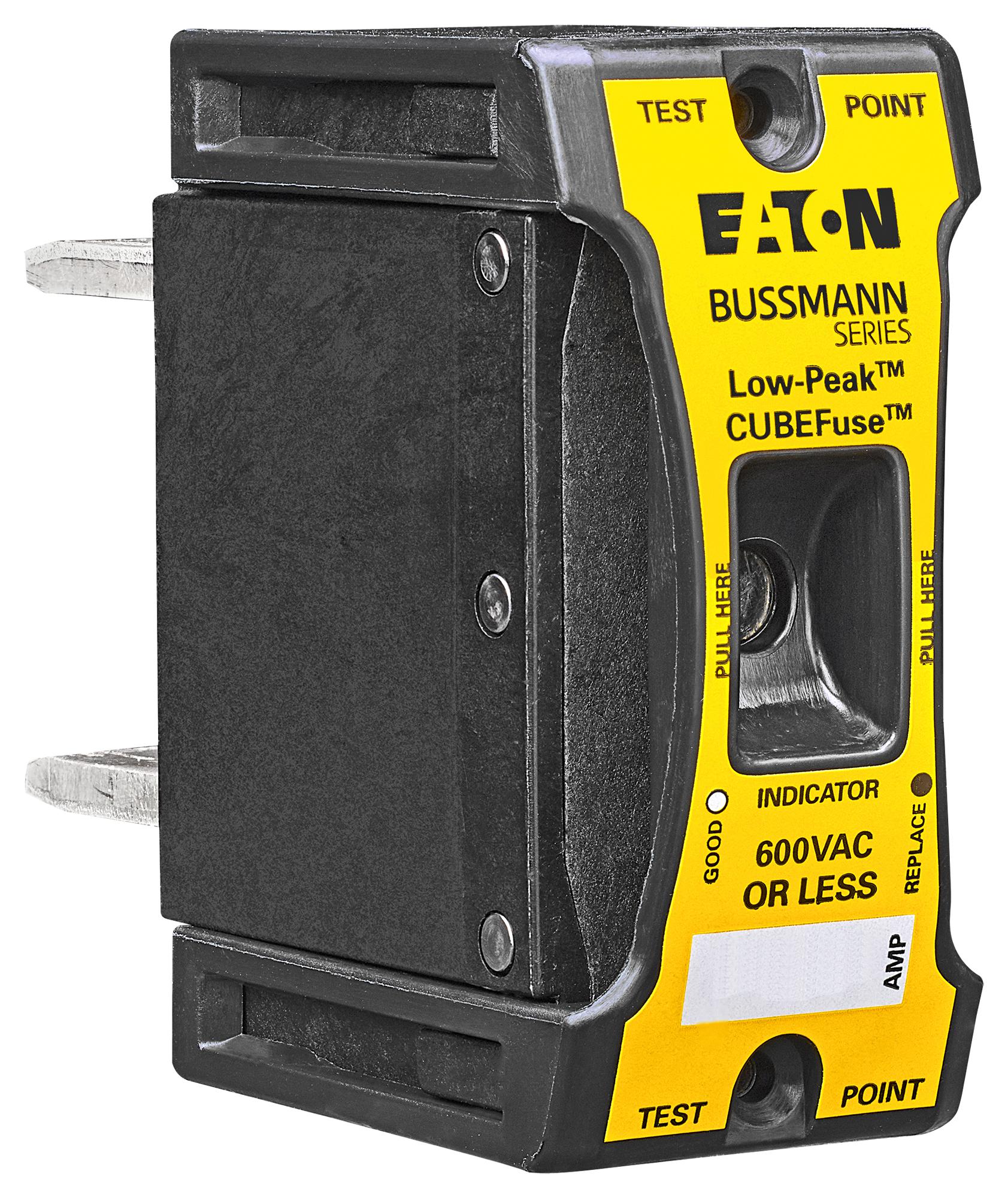

Eaton Bussmann TCF175 branch circuit fuse
The Bussmann Low-Peak CUBEFuse TCF175 is a UL Class CF time-delay, current-limiting fuse designed for branch circuits. It offers robust, space-saving, finger-safe construction with both indicating and non-indicating versions. Its dual-element design provides a minimum 10 seconds delay at 500% rated current, ensuring reliable protection while minimizing nuisance trips. Compatible with CUBEFuse holders and compact circuit protectors, it features high interrupting ratings up to 300 kA, making it ideal for commercial and industrial electrical systems requiring dependable, fast-acting fault protection.
Eaton Bussmann TCF175 branch circuit fuse Specifications:
- Rated Current: 170 A
- Voltage Rating: 600 Vac
- Interrupting Rating: Up to 300 kA RMS Sym. (UL)
- Type: Time-delay, current-limiting
- Construction: Dual-element, UL Class CF
- Temperature Range: -40°C to 80°C
- Features: Available in indicating and non-indicating versions, finger-safe design
- Application: Branch circuit protection, motor starting, general electrical protection
- Dimensions: Approximate length 1.88 inches (48 mm), width varies by series
- Compliance: UL Listed, CSA Certified, RoHS compliant
Buy the Eaton Series TCF175 Fuse: UL Class CF Time-Delay Fuse for Circuits: TCF175
Protect your electrical circuits efficiently with the Eaton TCF175 fuse, a high-performance UL Class CF time-delay fuse that's ideal for industrial and commercial applications. Its compact design, finger-safe features, and high interrupting rating up to 300 kA make it a dependable choice for safeguarding sensitive equipment and preventing costly outages. Easy to install with compatible holders and circuit protectors, this fuse ensures fast response to fault conditions while minimizing nuisance trips. Purchase online now for trusted, top-quality circuit protection.
Order your Eaton Series TCF175 fuse today and ensure your electrical system is protected with a reliable, space-efficient, and high-capacity circuit protection solution.
Frequently Asked Questions
Where can I buy Eaton Bussmann TCF175?
You can click on the BUY or RFQ button to purchase TCF175 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part TCF175?
You can download the TCF175 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of TCF175?
Eaton Bussmann
