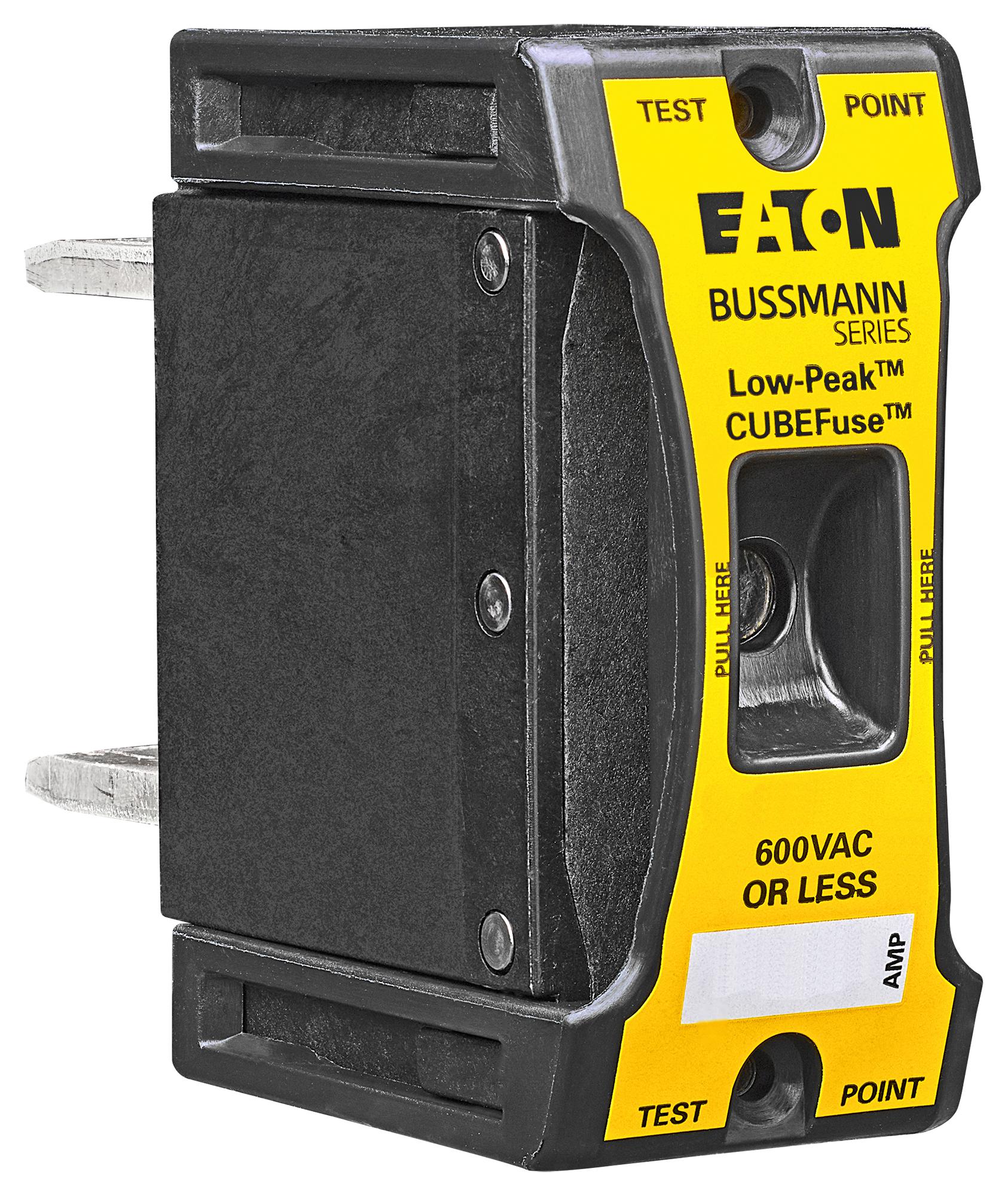

Eaton Bussmann TCF225RN Current-Limiting Fuse
The Bussmann Low-Peak CUBEFuse TCF225RN is a UL Class CF time-delay, current-limiting fuse suitable for branch circuit protection up to 225 amps. Designed with dual-element, space-efficient architecture and finger-safe features, it provides reliable overload and short-circuit protection while minimizing nuisance trips. Available in indicating and non-indicating versions, this fuse can safely interrupt fault currents up to 300 kA. Its compact size, easy application with CUBEFuse holders, and compatibility with advanced protection panels make it an ideal choice for industrial and commercial electrical systems, ensuring safe, reliable, and efficient circuit protection.
Eaton Bussmann TCF225RN Current-Limiting Fuse Specifications:
- Rated Current: 225A
- Voltage Rating: 600 Vac
- Interrupting Rating: Up to 300 kA
- Construction: Dual-element, time-delay, current-limiting
- Form Factor: Compact, finger-safe design
- Versions: Indicating and non-indicating
- Application: Branch circuit protection, space-efficient
- Mounting: CUBEFuse holders, DIN-Rail or panel mount
- Temperature Range: -40°C to 80°C
- Standards: UL Class CF, CSA Certified, RoHS compliant
Buy the Eaton Series TCF Class CF Fuse: 225A
Secure your electrical systems with the Eaton Series TCF225RN CUBEFuse, a space-efficient, UL-rated time-delay fuse designed for branch circuits up to 225 amps. Its current-limiting and dual-element construction provide optimal overload and short-circuit protection, reducing system downtime and enhancing safety. Compatible with CUBEFuse holders and mounting options, this fuse offers easy installation and reliable performance in demanding industrial and commercial environments. Purchase online now to ensure your circuits are protected with quality and efficiency from Eaton's trusted fuse series.
Order your Eaton Series TCF225RN CUBEFuse today and ensure reliable, space-saving circuit protection for high-current electrical systems.
Frequently Asked Questions
Where can I buy Eaton Bussmann TCF225RN?
You can click on the BUY or RFQ button to purchase TCF225RN from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part TCF225RN?
You can download the TCF225RN datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of TCF225RN?
Eaton Bussmann
