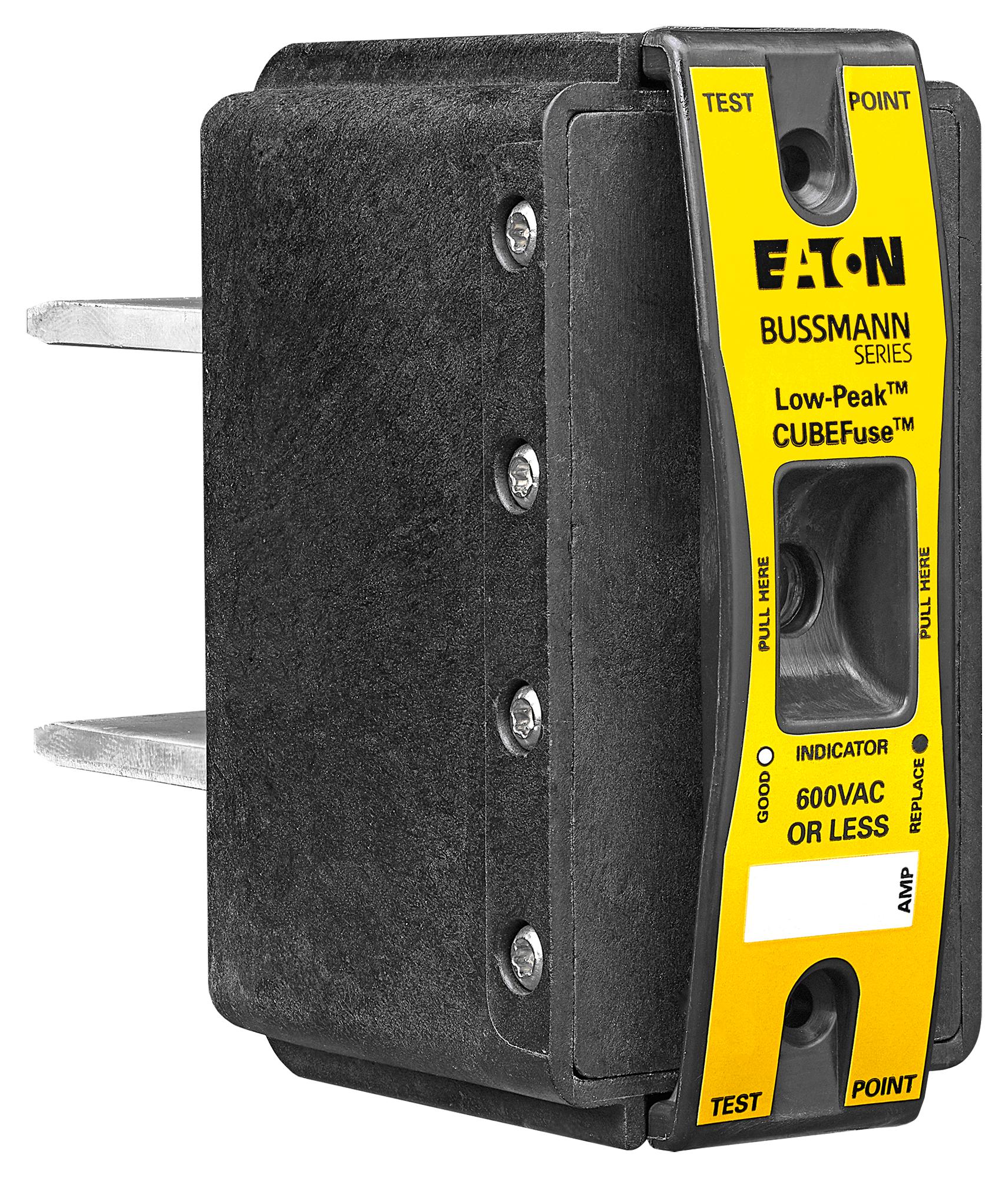

Eaton Bussmann TCF350 Low-Peak CUBEFuse
The Bussmann Low-Peak CUBEFuse series offers UL Class CF current-limiting, time-delay protection suitable for branch circuits up to 400 A. These compact, finger-safe fuses are available in indicating and non-indicating versions, with features including local easyID™ technology for quick troubleshooting and a robust dual-element design. They provide fast response to faults, with up to 300 kA interrupting rating, and are compatible with various fuse holders and switch configurations, ensuring reliable overcurrent protection for industrial and commercial electrical systems.
Eaton Bussmann TCF350 Low-Peak CUBEFuse Specifications:
- Rated Current: 6-400 A depending on model
- Voltage Ratings: 600 Vac, 300 Vdc, 575 Vac
- Interrupting Rating: Up to 300 kA RMS Sym.
- Temperature Range: -40°C to 80°C
- Construction: Dual-element, time-delay, current-limiting
- Enclosure: Finger-safe design with shrouds for rated applications
- Mounting: Dovetail holders, DIN-Rail, panel mount options
- Standards: UL Listed, CSA Certified, CE, RoHS compliant
- Features: Fast trip response, local easyID™, compatible with CUBEFuse holders and CCP switches
- Application: Industrial control, motor protection, circuit protection in commercial systems
Buy the Eaton Series Low-Peak CUBEFuse: TCF350
Discover the Eaton Low-Peak CUBEFuse TCF350, offering fast, reliable overcurrent protection for industrial and commercial applications. Its compact design saves space while providing current-limiting, time-delay performance up to 400 A. Features like indicating versions with local easyID™ technology enable quick troubleshooting, minimizing downtime. Compatible with various holders and switches, this UL-listed fuse ensures safe, dependable operation in diverse environments. Enhance system protection, reduce nuisance trips, and ensure compliance with safety standards by choosing Eaton's proven fuse technology for your electrical circuits.
Buy Eaton Low-Peak CUBEFuse TCF350 now and experience unmatched reliability and performance in circuit protection.
Frequently Asked Questions
Where can I buy Eaton Bussmann TCF350?
You can click on the BUY or RFQ button to purchase TCF350 from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part TCF350?
You can download the TCF350 datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of TCF350?
Eaton Bussmann
