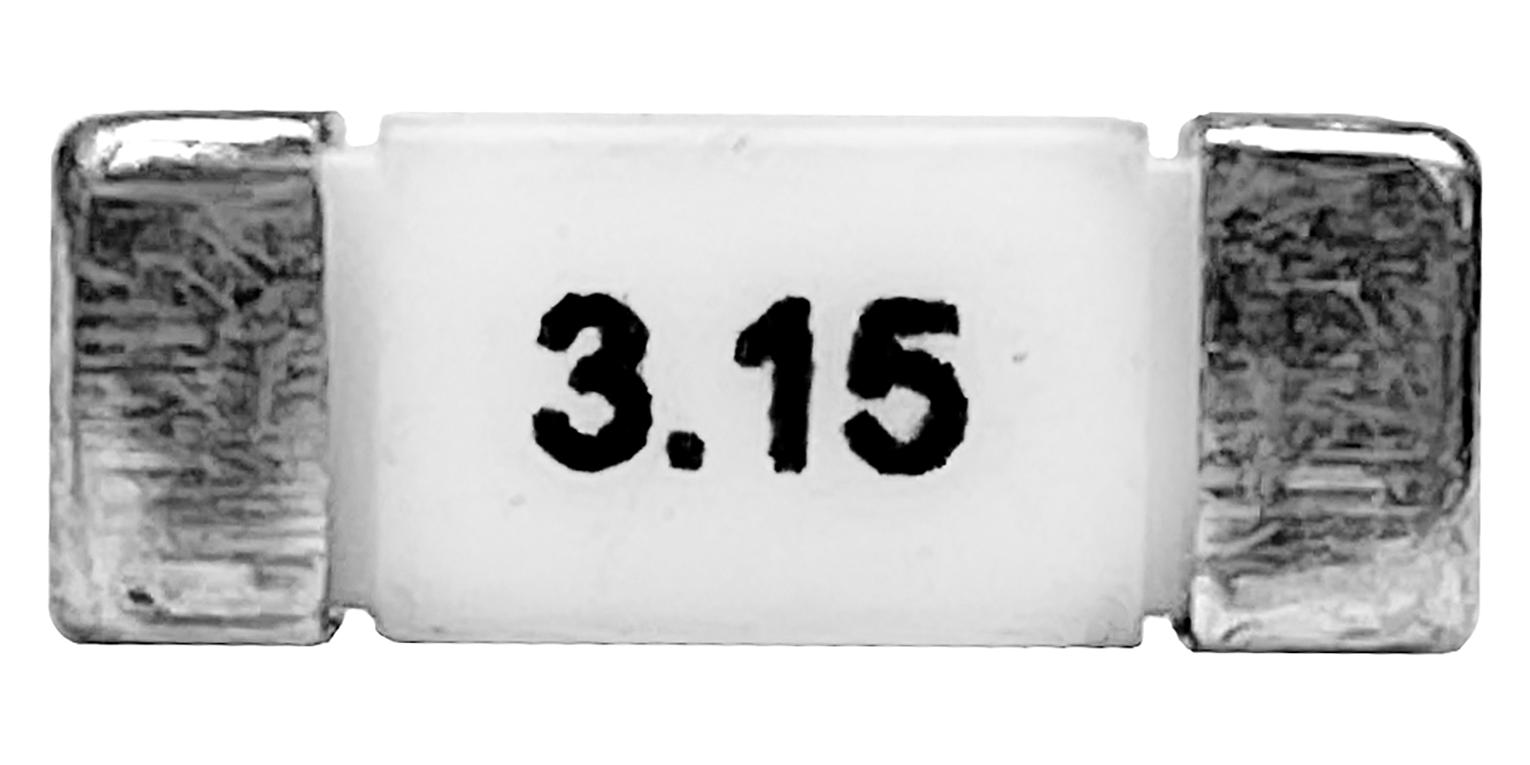

Eaton Bussmann TR1350HV315R High Voltage Fuse
The high voltage fast-acting brick fuse is designed for circuit protection in server, telecom, and power conversion applications. Measuring 11 x 5.0 x 5.0 mm, it features a ceramic tube with silver plated caps, rated at 500 Vde with various amperage ratings from 1A to 5A. This fuse offers high interrupting ratings up to 4500 A and is compliant with RoHS standards. Suitable for primary and secondary circuit protection, it withstands thermal shock, vibration, and solder heat, making it reliable for demanding environments.
Eaton Bussmann TR1350HV315R High Voltage Fuse Specifications:
- Dimensions: 11 x 5.0 x 5.0 mm surface mount package
- Voltage Rating: 500 Vde
- Current Ratings: 1A to 5A
- Interrupting Ratings: Up to 4500 A at specified voltages
- Thermal shock: MIL-STD-202, Method 1076, 100 cycles from -40°C to +125°C
- Resistance to solder heat: MIL-STD-202G, Method 210F, +260°C for 10 seconds
- Operating Temperature: -40°C to +125°C with derating
- Moisture Sensitivity Level: MSL 1
- Material: Ceramic tube with silver plated caps
- RoHS Compliant
- Packaging: 1000 parts per reel, tray dimensions 24.00 mm x 11.50 mm, reel diameter 330.41 mm
Buy the Eaton Series 1145HV High Voltage Fast-Acting Brick Fuse: TR-1145HV1-R
Purchase the Eaton Series 1145HV high voltage fast-acting fuse online today and safeguard your critical electrical systems. With a voltage rating of 500 Vde and various amperage options, these ceramic tube fuses are perfect for circuit protection in telecom, server, and power applications. Designed for demanding environments, they feature high interrupting ratings up to 4500 A, excellent thermal shock resistance, and RoHS compliance. Secure your project’s reliability and order now for fast delivery and expert support.
Order your Eaton Series 1145HV high voltage fast-acting brick fuse today and ensure reliable circuit protection for your telecom, server, and power conversion needs.
Frequently Asked Questions
Where can I buy Eaton Bussmann TR1350HV315R?
You can click on the BUY or RFQ button to purchase TR1350HV315R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part TR1350HV315R?
You can download the TR1350HV315R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of TR1350HV315R?
Eaton Bussmann
