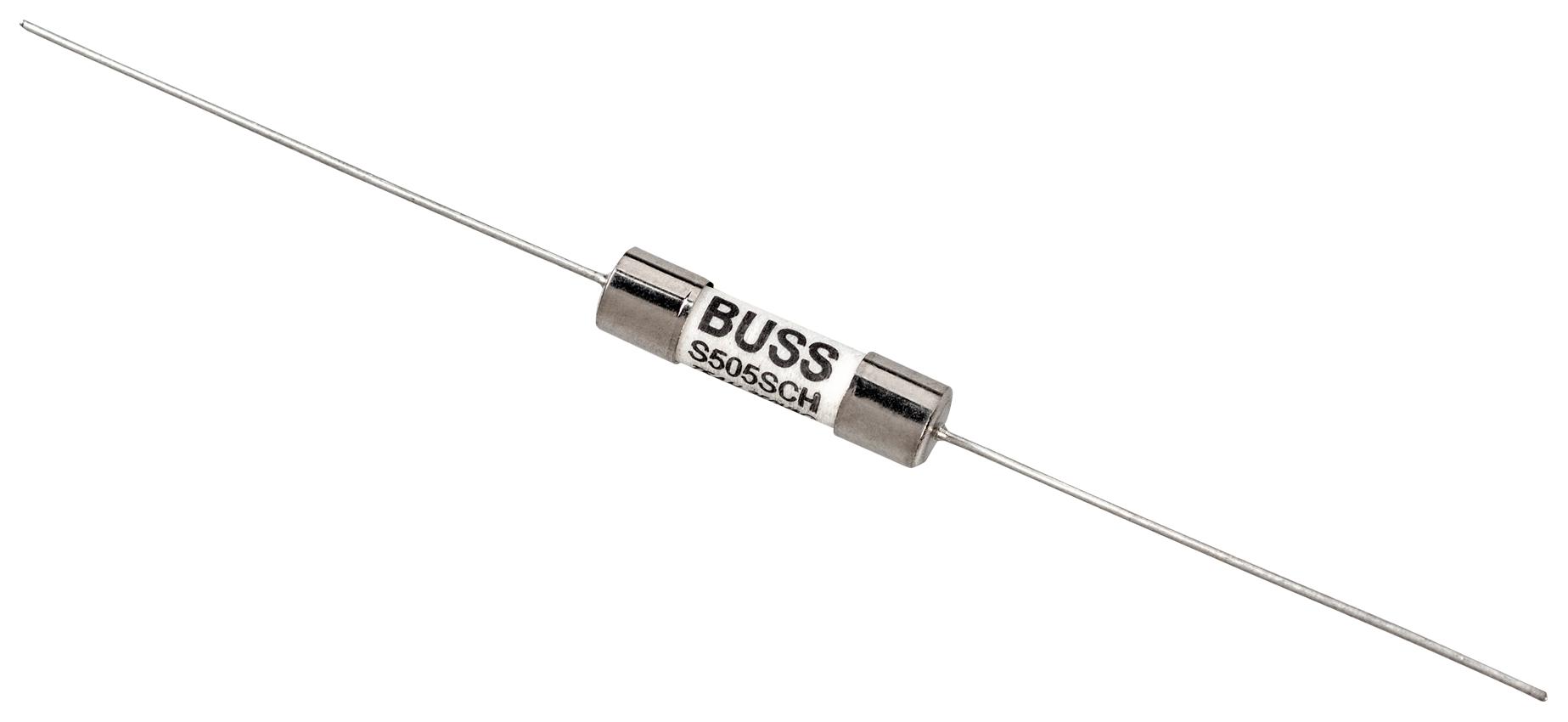

Eaton Bussmann TR2S505HV16R High Voltage Ceramic Fuse
The S505H series fuse with 5x20mm ceramic tubes and optional axial leads offers high voltage ratings and high breaking capacities, making them ideal for power supplies, chargers, and consumer electronics. These time-delay fuses are RoHS compliant, lead-free, halogen-free, and designed to meet IEC 60127-2 standards. Suitable for applications in TVs, lighting ballasts, and gaming systems, they feature electroplated end caps and are approved for UL, cURus, TUV, PSE, and CQC certifications. Available with various amperages and options for axial leads or ferrule types, ensuring reliable protection across diverse industrial and electronic applications.
Eaton Bussmann TR2S505HV16R High Voltage Ceramic Fuse Specifications:
- Voltage Rating: 250V ac, 600V dc
- Max. Voltage: 400V
- Breaking Capacity: 1500A at 250Vac
- Resistance Drop: 0.507 to 0.015 mV
- Body Size: 5x20mm ceramic tube
- Construction: Ceramic tube with electroplated end caps, optional axial leads
- RoHS Compliance: Lead-free, halogen-free
- Approval Certifications: UL, cURus, TUV, PSE, CQC
- Operating Temperature Range: -40°C to +85°C
- Soldering & Handling: Max temp 260°C, 10 sec max, no IR reflow recommended
Buy the Cooper Bussmann TR2S505HV16R – Reliable High Voltage Fuses for Industrial Applications
Secure your electronic devices with Cooper Bussmann High Voltage Ceramic Fuses. Perfect for power supplies, battery chargers, and consumer electronics, these RoHS-compliant fuses feature high breaking capacity and are certified for UL, cURus, TUV, PSE, and CQC approvals. Designed with 5x20mm ceramic tubes and optional axial leads, they are dependable and easy to install. Whether for industrial or household applications, purchasing online ensures quick delivery and trusted quality for reliable circuit protection in your projects.
Buy Cooper Bussmann TR2S505HV16R now and ensure reliable circuit protection with high voltage and high breaking capacity fuses for your electronics.
Frequently Asked Questions
Where can I buy Eaton Bussmann TR2S505HV16R?
You can click on the BUY or RFQ button to purchase TR2S505HV16R from an authorized Eaton Bussmann distributor.
How do I troubleshoot issues or seek technical support for part TR2S505HV16R?
You can download the TR2S505HV16R datasheet or visit the Eaton Bussmann website for support.
Who is the manufacturer of TR2S505HV16R?
Eaton Bussmann
