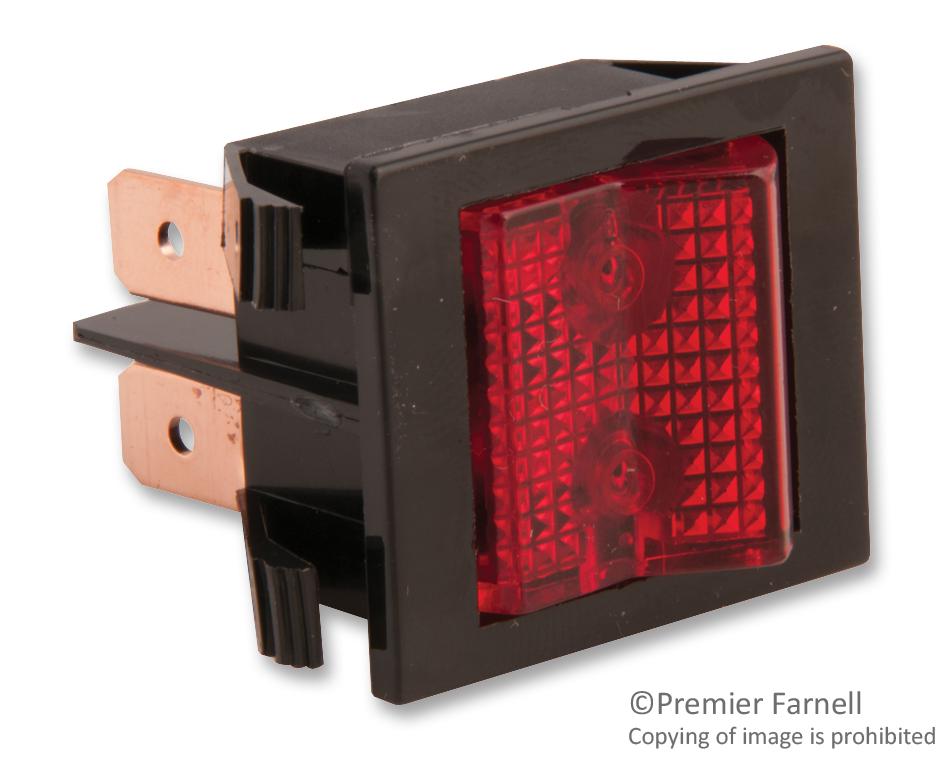

Eaton Electronics 2600R11E Panel Mount Rocker Switch
The 2600R11E is a double-pole single-throw illuminated AC rocker switch with a red actuator, designed for high inrush current handling up to 100A peak for 10 milliseconds. It features a moisture-resistant seal, silver inlay contacts over copper, oversized nylon lever with matte finish and thumb depression for easy operation. The switch includes 6.3mm quick connect terminals, a slow-make/slow-break contact mechanism, low contact resistance of 10 milliohms at 1A/4VDC, and minimum insulation resistance of 100 megaohms. It withstands at least 1000V RMS dielectric voltage, suitable for industrial, medical, communications, and commercial applications.
Eaton Electronics 2600R11E Panel Mount Rocker Switch Specifications:
- Poles: 2PST
- Rating: 16A, 250V ac (AC-15 load), 10A, 125V ac
- Inrush Capacity: Up to 100A peak for 10ms
- Contact Material: Silver inlay over copper
- Contact Resistance: 10 milliohms at 1A, 4VDC
- Insulation Resistance: 100 megaohms min.
- Dielectric Withstand Voltage: 1000V RMS minimum
- Terminal Types: 6.3mm quick connect terminals
- Operating Temperature: 0°C to 85°C
- Mounting: Panel-mount with specified dimensions
- Color: Red actuator, stainless bezel (optional)
- Certifications: UL, CSA, VDE
- Dimensions: Approximate panel cutout: 22.25 mm (+0.05/-0.07), depth 12.7 mm
- Switch Life: Minimum 50,000 cycles
Buy the Eaton 2600R11E – Reliable Toggle Switch for Industrial Applications
Purchase the Eaton 2600R11E panel mount double-pole single-throw illuminated rocker switch online today. Designed for high inrush currents up to 100A in 10ms, it features moisture resistance, easy thumb operation, and durable silver contact inlay over copper. The switch supports 16A, 250V AC ratings, with 6.3mm quick connect terminals, making it ideal for medical, industrial, communication, and general automation environments. Trust Eaton for reliable switching performance tailored for rigorous industrial applications and long-term operational stability.
Get Eaton 2600R11E today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy Eaton Electronics 2600R11E?
You can click on the BUY or RFQ button to purchase 2600R11E from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 2600R11E?
You can download the 2600R11E datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 2600R11E?
Eaton Electronics
