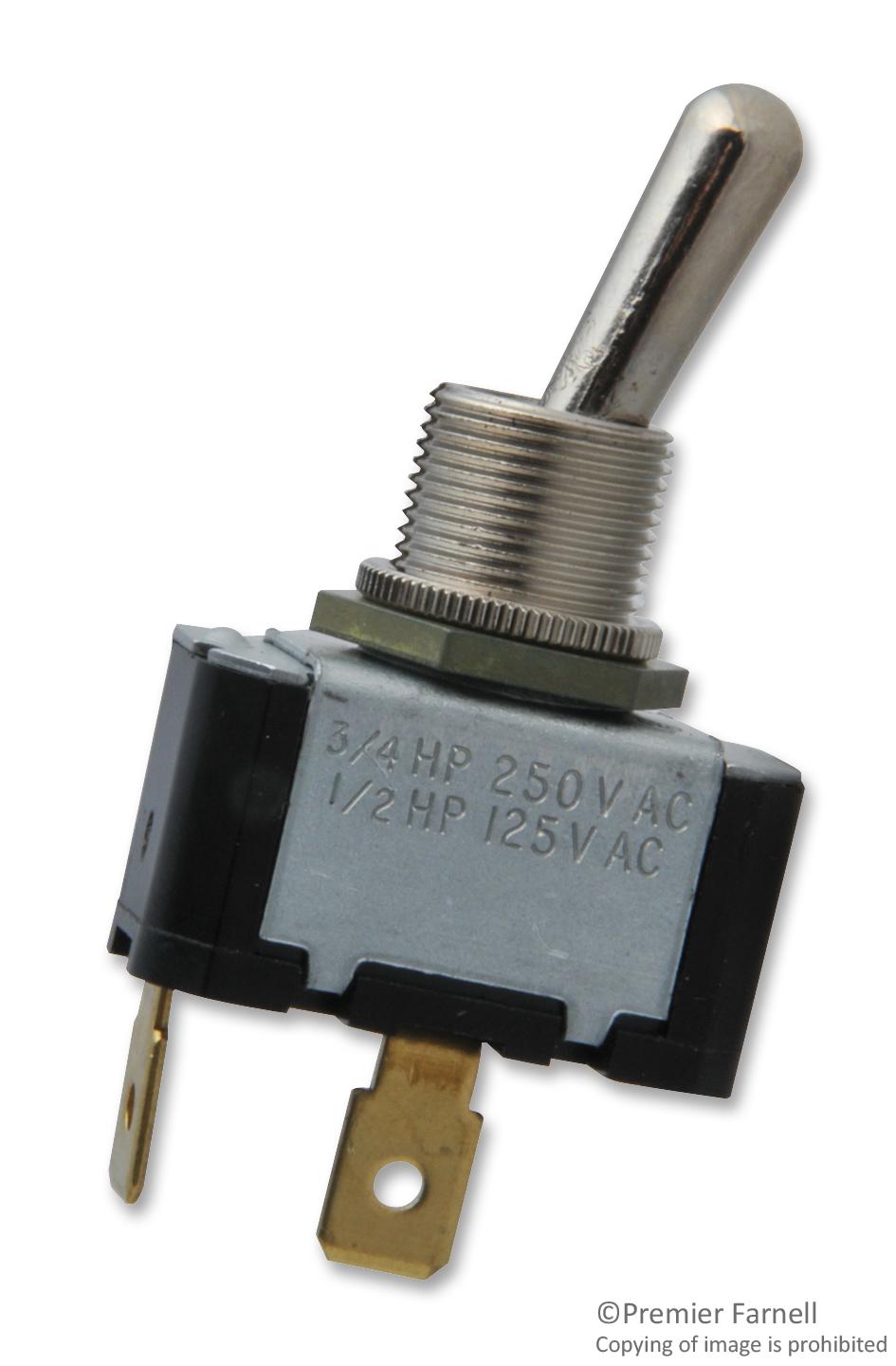

Eaton Electronics 7546K40 Power Toggle Switch
The 7546K40 is a single-pole, single-throw (SPST) AC-rated toggle switch featuring on-none-off switching action. It has silver-plated copper contacts and supports quick-connect brass spade terminals. This general-purpose illuminated switch is designed for one-hole mounting and features a thermoplastic paddle lever. It offers a wide range of features and flexible design options suitable for various applications. The package includes one hexagon locknut and a knurled face nut. Commonly used in power management applications.
Eaton Electronics 7546K40 Power Toggle Switch Specifications:
- Ratings: 125 Vac, 250 Vac, 3/4 hp at 250 Vac
- Contact Material: Silver-plated copper
- Terminal Types: Brass spade, quick-connect
- Base Material: Thermoplastic paddle lever
- Mounting: One-hole, 15/32-32 NS-2A
- Dimensional Diameter: 0.210 inches (5.33 mm)
- Overall Length: 1.430 inches (36.32 mm)
- Keyway: 0.030 inches (0.76 mm) deep
- Sealed Version: Silicone rubber seal for moisture resistance
- Operation: Maintained and momentary action
- Environmental Rating: Dust and moisture resistant seal
- Standards: UL Recognized, RoHS Compliant
Buy the Eaton Series X Series Toggle: 7546K40
Order the Eaton 7546K40 power toggle switch online today and enjoy fast delivery, exceptional durability, and versatile features ideal for power management, motor control, and industrial automation. This high-quality switch features silver-plated copper contacts, quick-connect terminals, and moisture-resistant sealing, making it suitable for demanding environments. Whether for maintenance or new installations, purchase this reliable switch online and ensure seamless power switching with enhanced safety and durability in your equipment or control panels.
Buy Eaton 7546K40 now and experience unmatched reliability and performance for industrial power control and automation.
