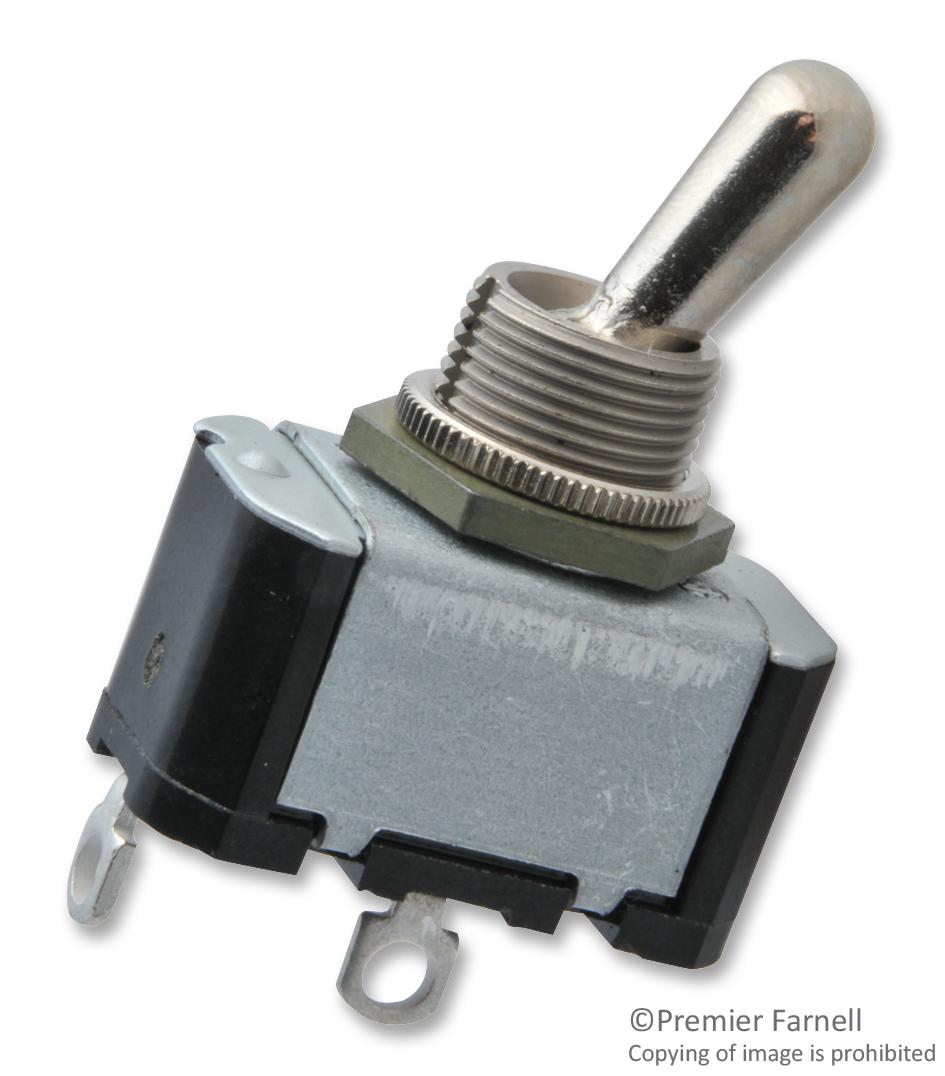

Eaton Electronics 7580K7 General Purpose Toggle Switch
The 7500 series general-purpose toggle switch offers versatile features and flexible design for industrial and commercial applications. It supports multiple terminal types including screw terminals, solder lugs, and 0.25-inch spade connectors, with options for short or tall bushings (11/32 in or 15/32 in). The switch features an assembled construction, optional reversing jumpers (not compatible with 3-independent ON circuits), a rotatable keyway (180°), and a lever seal for enhanced durability. It is ideal for machinery, automation, and control systems requiring reliable switching solutions.
Eaton Electronics 7580K7 General Purpose Toggle Switch Specifications:
- Ratings: 20A at 125 Vac, 10A at 277 Vac, 3/4 hp 125-250 Vac
- Contact mechanism: Slow-make/slow-brake butt contact
- Terminal types: Screw terminals, solder lug terminals, 0.25 in spade connectors
- Base material: Thermoset molding
- Mounting: Threaded bushing 11/32 or 15/32 inch with 32 threads/inch, anti-rotation keyway
- Hardware: Includes hexagon locknut and other mounting hardware
- Lever options: Short (15/32 inch), Tall (11/16 inch), with 180° rotatable keyway
- Environmental: Operating temperature from 0°F to 150°F (-17.8°C to 65.6°C), dust and splash resistant
- Dimensions: Bushing diameter 0.468 inch (11.89 mm), overall switch height varies depending on bushing and lever options
Buy the Buy Eaton General Purpose Toggle Switch Part Number 7580K7 Online
Experience reliable operation with Eaton's versatile general-purpose toggle switch designed for industrial automation, machinery control, and equipment applications. It features multiple terminal types, bushings, and lever options including short and tall variants with an anti-rotation keyway. The switch's robust thermoset base, extensive ratings, and dustproof construction ensure long-lasting durability and safe operation. Purchase online now for industry-standard switching solutions that combine flexibility, safety, and performance for your equipment needs.
Get Eaton 7580K7 today—built for industrial durability and reliable switching performance in automation and machinery applications.
Frequently Asked Questions
Where can I buy Eaton Electronics 7580K7?
You can click on the BUY or RFQ button to purchase 7580K7 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7580K7?
You can download the 7580K7 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7580K7?
Eaton Electronics
