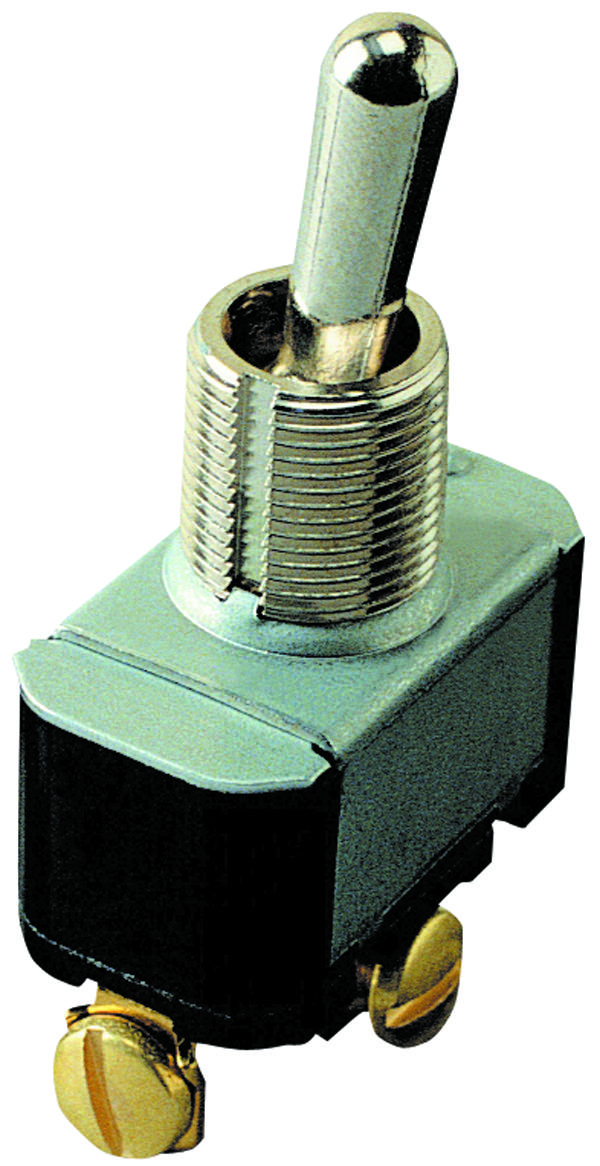

Eaton Electronics 7581K6 General Purpose Toggle Switch
The 7500 series general-purpose toggle switch offers a wide range of features and flexible design options suitable for various applications. It is available with different terminal types, including solder lugs, screw terminals, and 0.25-inch spade terminals. The switch features options such as short (11/32 inch) or tall (15/32 inch) bushings, and hardware is provided pre-assembled. Additional features include reversing jumpers (not compatible with three independent ON circuits), different lever lengths (short 15/32 inch or tall 11/16 inch), a 180-degree rotatable keyway, and a lever seal. Designed primarily for industrial use.
Eaton Electronics 7581K6 General Purpose Toggle Switch Specifications:
- Ratings: 20A at 125 Vac, 10A at 277 Vac, 3/4 hp 125-250 Vac
- Contact mechanism: Slow-make/slow-brake butt contact
- Terminal types: Screw terminals, solder lug, #0.25 in spade terminals
- Base material: Thermoset molding material
- Mounting: Threaded bushing with 0.468 in diameter, 32 threads/inch, and 0.068 x 0.035 in deep keyway
- Hardware: Pre-assembled, includes nuts and washers
- Lever options: Short 15/32 in or tall 11/16 in with optional rotatable keyway
- Operating temperature: -17.8°C to 65.6°C
- Dimensions: Bushings 0.468 inch diameter, with various lever lengths and mounting depths
- Standards: UL Recognized, CSA Certified
Buy the Eaton Series 7500 General Purpose Toggle Switch: 7581K6
Discover the Eaton Series 7500 general purpose toggle switch, engineered for durability and flexibility. Available with screw terminals, solder lugs, and spade connectors, it is suitable for industrial, automation, and equipment applications. Designed with a thermoset base, optional lever lengths, and a rotatable keyway, it ensures reliable operation in demanding environments. Easy to install with pre-assembled hardware, it is UL Recognized and CSA Certified, making it an excellent choice for professionals seeking quality and versatility in control switches.
Order your Eaton Series 7500 general-purpose toggle switch today and give your projects the dependable quality they deserve with versatile design features.
