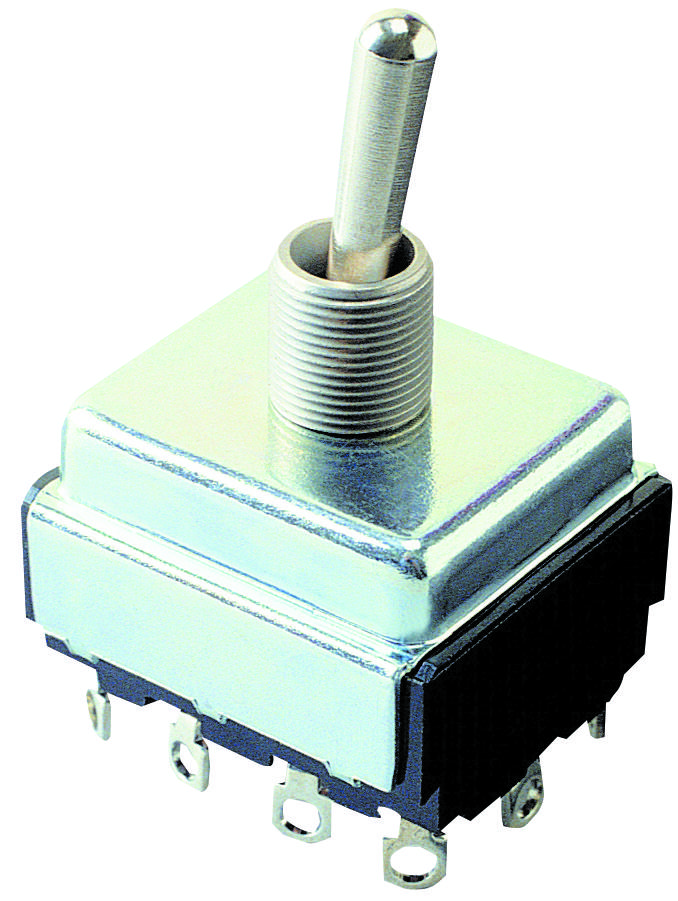

Eaton Electronics 7695K5 General Purpose Switch
The 7695K5 is a four-pole double-throw general purpose AC toggle switch featuring tintillate-plated brass solder lug terminals and an ON-NONE-ON switching function. It is designed with a bright nickel-plated toggle lever, an 11.91mm length bushing, and a thermoset molding base, making it suitable for various industrial and commercial applications. It includes slow-make/slow-break contacts, a 180° rotate keyway, and a lever seal for moisture resistance. Rated for 1000Vrms dielectric withstand voltage, it offers reliable performance in electronics, automation, and communication equipment.
Eaton Electronics 7695K5 General Purpose Switch Specifications:
- Number of Poles: Four
- Switch Type: Double-throw (4PDT)
- Contact Material: Tintillate-plated brass
- Terminal Types: Solder lug, brass
- Terminal Size: #6-32 x 1/4 in (6.35 mm)
- Bushing Length: 11.91 mm
- Mounting Base: Thermoset molding
- Contact Action: Slow-make/slow-break butt contacts
- Dielectric Strength: 1000Vrms minimum
- Operating Temperature Range: 0° to 150°F (-17.8° to 65.6°C)
- Switch Ratings: 20A at 125 Vac, 10A at 277 Vac
- Standards: UL Recognized, CSA Certified
- Additional Features: Rotate keyway with 180° rotation, lever seal for moisture resistance
Buy the Eaton 7695K5 – Reliable 4PDT Toggle Switch for Industrial Applications
Ensure your industrial and automation projects operate dependably with Eaton’s 7695K5 four-pole AC toggle switch. Featuring a durable thermoset base, extensive voltage ratings, and moisture-resistant lever seal, it is perfect for demanding environments. Easy to install with standard 0.47-inch mounting holes, it supports a wide range of circuits including ON-NONE-ON and multiple contact configurations. Ideal for manufacturing, electronics, control panels, and instrumentation, purchase online today for fast delivery and trusted performance.
Buy Eaton 7695K5 now and experience unmatched reliability and performance in industrial control and automation systems.
Frequently Asked Questions
Where can I buy Eaton Electronics 7695K5?
You can click on the BUY or RFQ button to purchase 7695K5 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7695K5?
You can download the 7695K5 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7695K5?
Eaton Electronics
