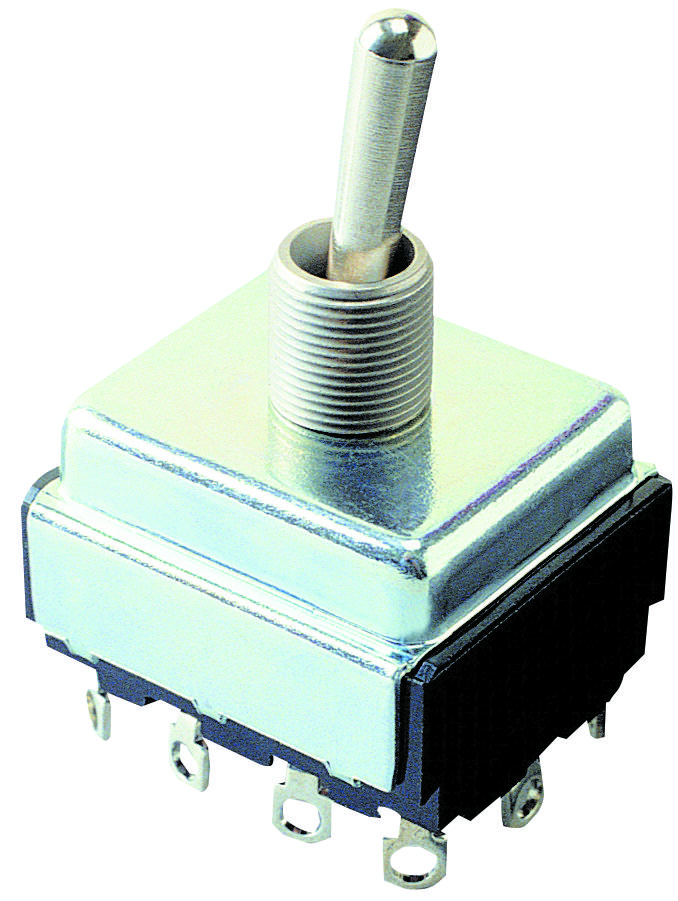

Eaton Electronics 7702K2 Three-Pole AC Toggle Switch
The 7702K2 is a three-pole double-throw AC toggle switch designed for versatile applications including industrial machinery, control panels, and instrumentation. It features brass screw terminals, slow-make/slow-break contacts, and a durable thermoset molded base with a nickel-plated toggle lever. The switch has a bush length of 11.91 mm, a rotate keyway that can be turned 180°, and an integrated lever seal for moisture resistance. Its dielectric withstand voltage is 1000 Vrms, making it suitable for demanding environments requiring reliable switching performance.
Eaton Electronics 7702K2 Three-Pole AC Toggle Switch Specifications:
- Current rating: 15A at 125 Vac, 10A at 250 Vac
- Number of poles: 3PDT
- Switch action: Slow-make/slow-break butt contact
- Terminal type: Brass screw terminals
- Base material: Thermoset molding
- Bush length: 11.91 mm
- Keyway: 0.068 x 0.035 in, 180° rotation possible
- Lever finish: Nickel-plated with seal
- Dielectric voltage: 1000 Vrms minimum
- Operating temperature: 0° to 150°F (-17.8° to 65.6°C)
Buy the Eaton Series 7702K2 Three-Pole AC Toggle Switch: 7702K2
Purchase your Eaton Series 7702K2 three-pole AC toggle switch online now and benefit from a robust, high-quality component suitable for a variety of industrial, medical, and automation applications. Designed with brass screw terminals, a durable thermoset base, and a nickel-plated lever, it offers a dielectric withstand voltage of 1000 Vrms and a 180° rotating keyway for versatile installations. Reliable, moisture-resistant, and certified, this switch is essential for high-demand environments where operational dependability is crucial.
Order your Eaton Series 7702K2 three-pole AC toggle switch today and ensure reliable performance in demanding industrial and commercial control systems.
Frequently Asked Questions
Where can I buy Eaton Electronics 7702K2?
You can click on the BUY or RFQ button to purchase 7702K2 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7702K2?
You can download the 7702K2 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7702K2?
Eaton Electronics
