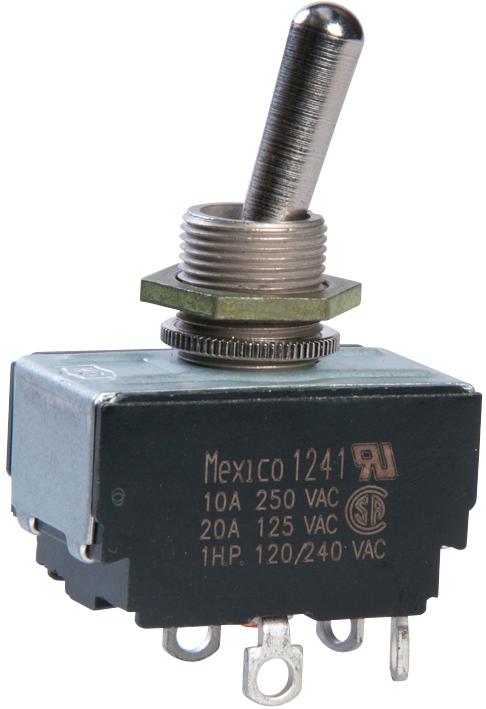

Eaton Electronics 7803K11 Datasheet & Stock

The 7800 series general purpose Toggle Switch offers the widest selection of features and the design flexibility to meet a variety of applications. It is available in solder lugs, screw, 0.25-inch spade terminals. The Combi-Term option is an extension of our AC rated general purpose toggle switch. The design allows the user the option of screw terminals 0.25 in quick-connect or solder termination all on the same switch. The special clips and screws are provided in a poly bag with the switch.




Three independent ON circuit (2PDT or 4PDT only)

Hardware-furnished assembled

Reversing jumpers (Not for use with 3-independent ON circuit)

Rotate keyway 180°

Silicone lever seal (1P and 2P only)

Omit one pole (2P, 3P, 4P only. Not for use with 3-independent ON circuit)

Combi-term option

Maintained and momentary

1PST, 1PDT, 2PST, 2PDT, 3PST, 3PDT, 4PST and 4PDT circuits





Applications


Industrial
