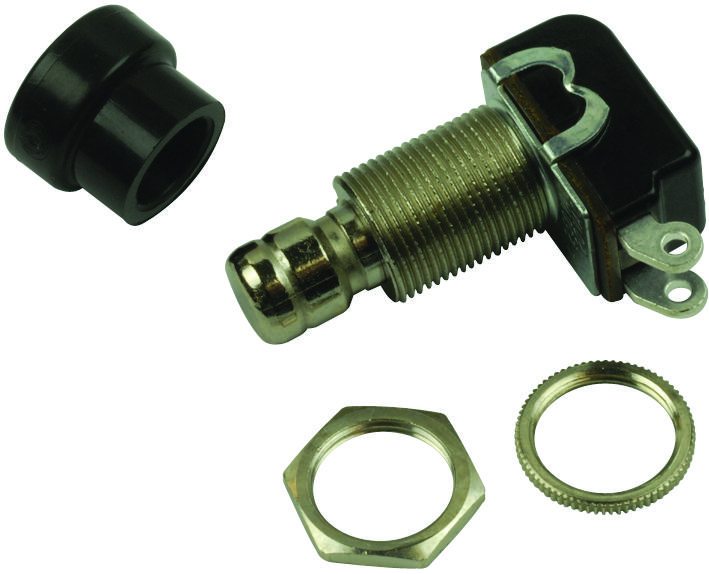

Eaton Electronics 7836K11C Momentary Pushbutton Switch
The 7836K11C is a single-pole single-throw pushbutton switch with a black nylon snap-on actuator and normally open contact. Designed for light-duty AC applications, it features solder lug terminals and offers customizable configurations, button styles, and termination options for general-purpose use. The switch has slow-make/slow-break contacts with a light operating force, making it suitable for sensing and instrumentation. It is mountable via a threaded bushing of 0.468 inches diameter, rated for operation from 0°F to 150°F, and is ideal for control panels requiring reliable momentary circuits.
Eaton Electronics 7836K11C Momentary Pushbutton Switch Specifications:
- Ratings: AC applications only, lightweight capacity for sensing, and instrumentation
- Contact Material: Silver-plated copper, with slow-make/slow-break contacts
- Mounting: Threaded bushing of 0.468 inches diameter (11.90 mm)
- Operating Temperature: 0°F to 150°F (-17.8°C to 65.6°C)
- Terminal Type: Solder lug terminals
- Button Material: Black nylon snap-on button
- Button Dimensions: approximately 0.469 inches diameter, with a stroke of 0.040 inches
- Electrical Life: 25,000 cycles, Mechanical Life: 1,000,000 cycles
- Maximum Operating Force: 0.7 lbs (approximate)
- Dimension: Overall length approximately 0.562 inches (14.27 mm), panel hole diameter 0.469 inches (11.89 mm)
Buy the Eaton 7836K11C – Reliable Momentary Switch for Industrial Applications
Enhance your control panel with the Eaton 7836K11C momentary pushbutton switch. Featuring a durable nylon actuator, solder lug terminals, and rated for AC use, it provides dependable performance for sensing, instrumentation, and general-purpose control applications. Its light operating force and slow-make/slow-break contacts ensure smooth operation and longevity, making it ideal for a variety of industrial environments. Easily mountable with a threaded bushing, this switch offers reliable, quick installation and consistent switching performance, perfect for demanding control systems.
Order your Eaton 7836K11C single-pole pushbutton switch today and ensure reliable operation in your sensing and instrumentation projects.
Frequently Asked Questions
Where can I buy Eaton Electronics 7836K11C?
You can click on the BUY or RFQ button to purchase 7836K11C from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7836K11C?
You can download the 7836K11C datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7836K11C?
Eaton Electronics
