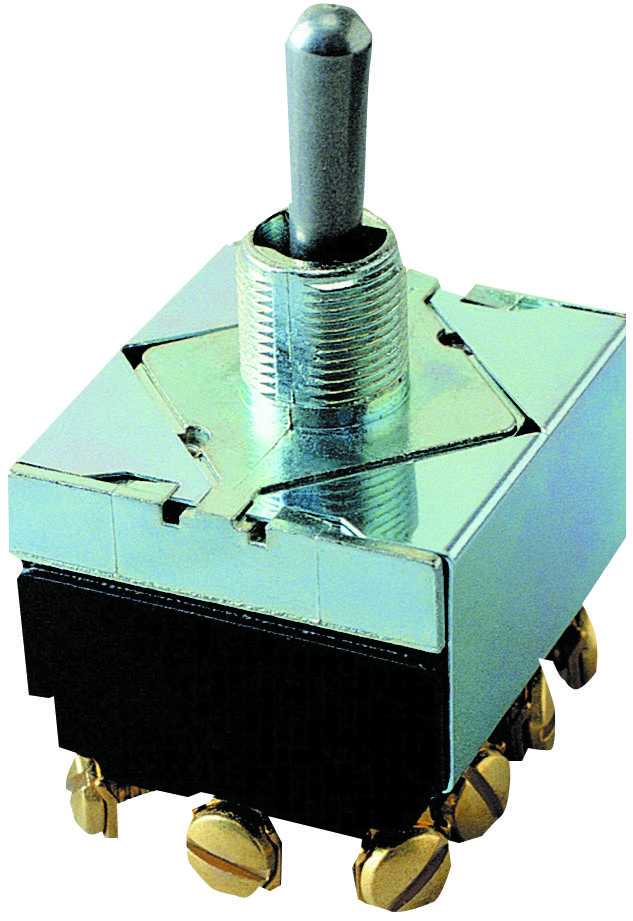

Eaton Electronics 7992K10 Heavy Duty Hesitation Switch
The 7992K10 is a heavy-duty double-pole double-throw DPDT hesitation toggle switch designed for industrial and military applications. It features brass screw lugs, brass or coin silver contact face buttons for reliable contact action, and offers a minimum dielectric withstand of 1000 VRMS. This switch is mounted via a threaded bushing (0.468 in diameter) with an anti-rotation keyway and includes hardware such as locknuts and lockwashers. It operates across a temperature range of -17.8°C to 65.6°C and is suitable for use in medical, aerospace, defense, industrial machinery, signal processing, and communication systems due to its durability and high current handling capacity.
Eaton Electronics 7992K10 Heavy Duty Hesitation Switch Specifications:
- Ratings: 15A at 125 Vac, 15A at 250 Vac, 6A at 28 Vdc, 1/2 hp at 125-250 Vac, 3/4 hp at 250 Vac
- Contact mechanism: Heavy duty—slow-make/slow-break butt contact
- Contact material: Movable—silver-plated copper; Stationary—copper with silver face
- Terminal types: Brass screw terminals for #6-32 x 6.35 mm screws, solder lug terminals, unassembled
- Base material: Thermoset molding
- Mounting: Threaded bushing (0.468 in dia), 32 threads/in, with anti-rotation keyway (0.030 in deep, 0.060 in wide)
- Hardware: Locknuts, lockwashers, and nuts supplied (unassembled)
- Dielectric withstand: 1000 VRMS minimum
- Operating temperature range: -17.8°C to 65.6°C
- Dimensions: Mounting hole diameter 0.468 in, overall length approx. 1.10 in, width approx. 0.90 in
Buy the Eaton Series Heavy Duty Hesitation Switch: 7992K10
Order the Eaton heavy-duty hesitation switch 7992K10 online today—designed for industrial, medical, aerospace, and military applications. With sealed construction, copper contacts, and a rugged thermoset base, this switch offers reliable performance across wide temperature ranges. Its heavy-duty load ratings, including 15A at 125 and 250 Vac, make it perfect for motor reversing, speed control, and safety applications. Easy to install with hardware included, it ensures high durability in demanding environments, simplifying your procurement and installation process.
Get Eaton heavy-duty hesitation switch 7992K10 today—built for industrial durability and long-lasting performance.
Frequently Asked Questions
Where can I buy Eaton Electronics 7992K10?
You can click on the BUY or RFQ button to purchase 7992K10 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 7992K10?
You can download the 7992K10 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 7992K10?
Eaton Electronics
