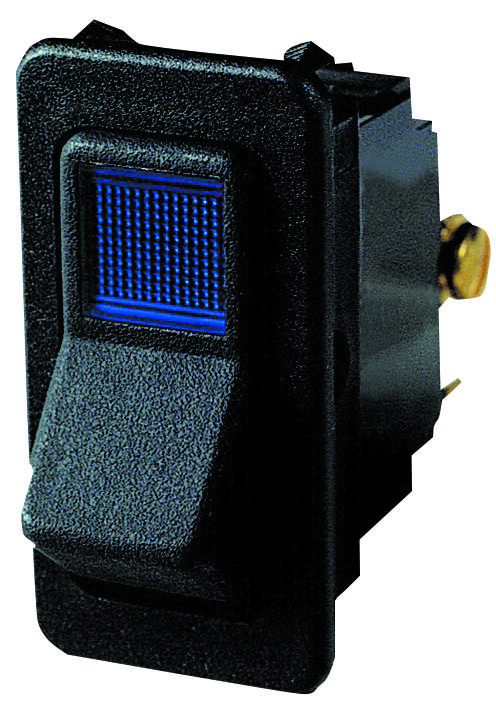

Eaton Electronics 8004K40N1V2 Euro-look rocker switch
The 8004K40N1V2 is a durable full-size Euro-look double-pole double-throw DPDT rocker switch featuring 0.25-inch spade terminals and a black mounting frame. Designed for demanding applications, it has a recessed face suitable for labeling and can be equipped with a silicone rubber seal for moisture and dust resistance. The switch can be gang-mounted into a single panel opening, making it ideal for industrial, logistics, defense, military, and aerospace uses.
Eaton Electronics 8004K40N1V2 Euro-look rocker switch Specifications:
- Ratings: 15A @ 125Vac, 10A @ 250V ac, 3/4 HP @ 250V ac, not available with lamp wired independent.
- Contact Material: Movable—Silver plated copper; Stationary—Copper with fine or coin silver contact face button.
- Mechanical Life: Momentary—25,000 operations, minimum; Maintained—100,000 operations, minimum.
- Electrical Life: 25,000 operations min. at full load.
- Terminal Type: 6.35 mm (.250”) spade—Brass, Screw—Brass (includes #6-32 x 3/16 binding head terminal screws), Solder—Tintillate plated brass.
- Rocker Material: Thermoplastic, multi-colored, textured finish.
- Dimensions: Approximately 25 mm (1 inch) by 37 mm (1.45 inch), with mounting frame; face with recessed area for labeling.
- Seal: Available with silicone rubber for moisture and dust resistance.
- Mounting Means: Snap-in mounting with plastic bezel; gang-mountable into a single panel opening.
- Dielectric: 1,000V RMS minimum.
- Lamps: Not applicable.
- Approvals: CUR marked, recognized component for Canada.
Buy the Eaton 8004K40N1V2 – Reliable Euro-Look DPDT Switch for Industrial Applications
Purchase the Eaton Euro-look rocker switch online today to benefit from a rugged design featuring moisture and dust resistance. This full-size DPDT switch with recessed face and gang-mount capability ensures reliable performance in industrial, military, and aerospace applications. Equipped with durable silver-plated contacts and a thermoplastic rocker, it offers long-lasting operation. Benefit from fast, easy ordering, factory-direct shipping, and technical support to meet your project’s exact needs for safety, durability, and performance.
Buy Eaton 8004K40N1V2 now and experience unmatched durability and moisture resistance for demanding industrial and aerospace needs.
