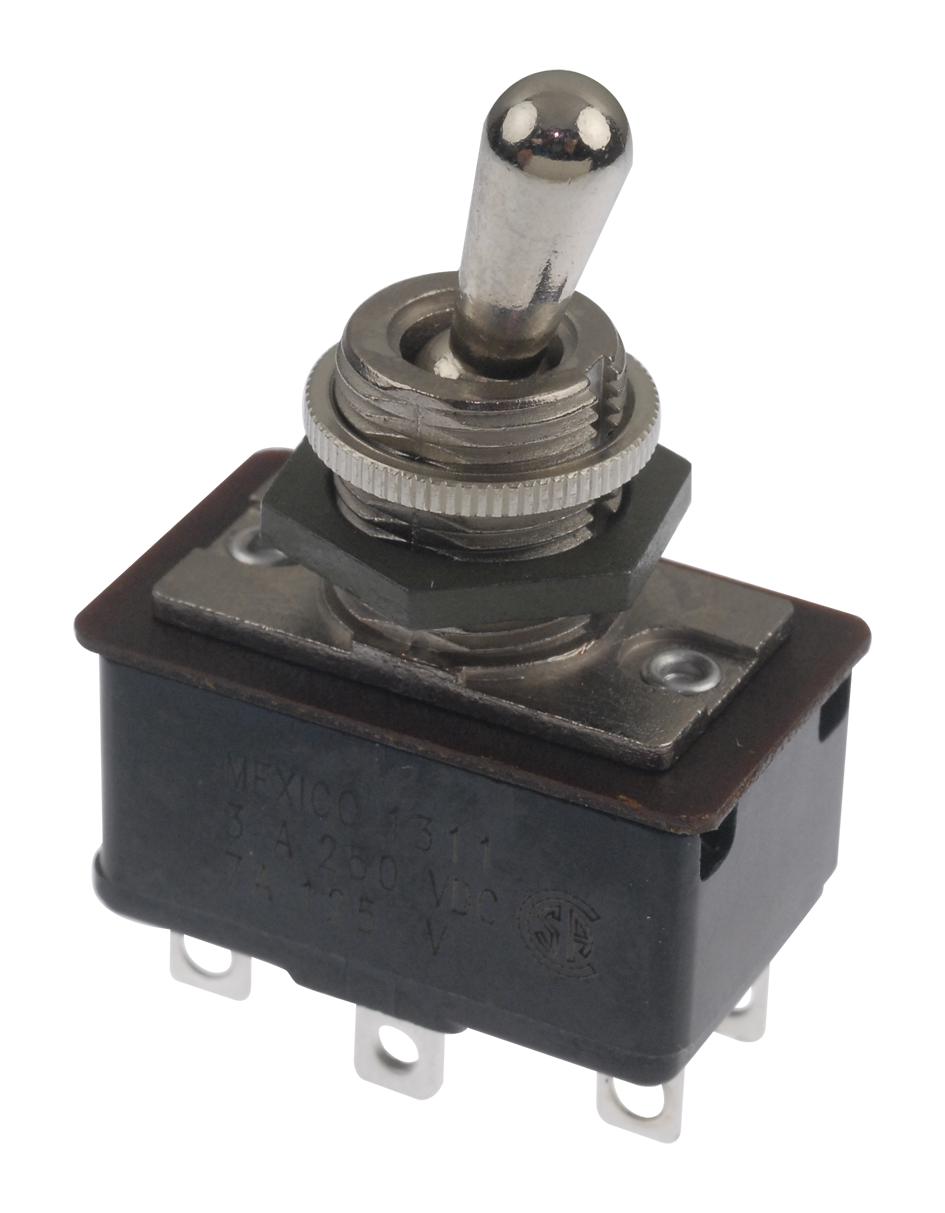

Eaton Electronics 8373K107 DPDT Toggle Switch
The 8373K107 is a double-pole double-throw AC/DC toggle switch designed for small motor applications, featuring quick-make/quick-break contacts, silver-plated brass terminals, and a thermoset base. It operates reliably within -17.8°C to 65.6°C, offering ON-NONE-ON switching with bronze contacts and integrated mounting hardware. Suitable for consumer electronics, instrumentation, communications, and industrial control equipment, this switch provides stable switching performance, minimal contact wear, and durability. Its robust design ensures dependable operation in various demanding environments, making it ideal for applications requiring high-speed quick-make contact action.
Eaton Electronics 8373K107 DPDT Toggle Switch Specifications:
- Ratings: 6A, 125 Vac/Vdc and 3A, 250 Vac
- Contact mechanism: Quick-make/quick-break wiping action
- Contact material: Bronze silver-plated
- Terminal types: Solder lug terminals, brass, accepts #5-40 x 5/32 in screws
- Base material: Thermoset molding
- Mounting means: Threaded bushing 0.468 in dia., 32 threads/inch, with anti-rotation keyway
- Finish: Bright nickel-plated lever and bushing
- Operating temperature: -17.8°C to 65.6°C
- Switch type: DPDT, ON-NONE-ON
- Dimensions: Lever length approximately 0.469 in (11.91 mm), keyway depth 0.035 in (0.88 mm), width 0.068 in (1.72 mm)
- Terminal configuration: Solder lug or screw terminals, 6 in wire leads available
- Standards: UL Recognized, CSA Certified, RoHS Compliant
Buy the Eaton Series DPDT Toggle Switch: 8373K107
Discover the Eaton Series DPDT toggle switch 8373K107, a versatile and reliable component featuring quick-make contacts, durable bronze-plated contacts, and a thermoset base suitable for small motors and industrial control. With a compact design, it fits easily into panel mounts and offers smooth ON-NONE-ON switching with high-speed contact action. Ideal for consumer electronics, instrumentation, communication, and automation projects, this switch ensures consistent performance, minimal contact wear, and robust construction. Purchase online today for quality you can count on for your critical applications.
Order your Eaton Series DPDT toggle switch 8373K107 today and give your projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy Eaton Electronics 8373K107?
You can click on the BUY or RFQ button to purchase 8373K107 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part 8373K107?
You can download the 8373K107 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of 8373K107?
Eaton Electronics
