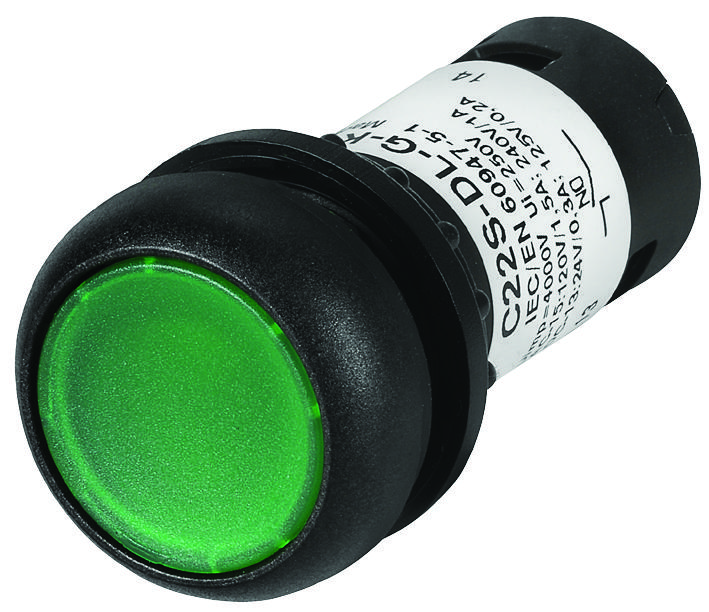

Eaton Electronics C22SDLGK10120 Pushbutton Switch
The C22 line offers compact, rugged, all-in-one pushbuttons, indicator lights, selector switches, and emergency stops made with IP65/IP66/IP67 ratings. Designed for durability, they support LED illumination for up to 100,000 hours, modular customization, laser etching, field convertibility, and high mechanical lifespan. These ergonomic and attractive components are ideal for industrial control panels, wash-down environments, and safety applications, providing reliable performance across a variety of configurations including momentary, maintained, illuminated, and non-illuminated options with diverse color and mounting choices.
Eaton Electronics C22SDLGK10120 Pushbutton Switch Specifications:
- Protection Ratings: IP65/IP66/IP67/IP69K, NEMA 4X, 13, 1P67, 1P68, 1P69K
- Lifespan: Pushbuttons rated for 5 million mechanical operations, selector switches for 1 million operations
- Operating Force: 25 N for pushbuttons
- Environmental Ratings: Damp heat, cyclic and constant to IEC standards
- Mounting: Notched hole, anti-rotation tab, central nut mounting
- Electrical Ratings: Rated impulse voltage 4000 Vac, control circuit voltage 250 V, overvoltage category II
- Terminal Capacity: 2.5-15 mm² flexible or solid wire
- Operating Temperature: -25°C to +70°C (ambient), storage -30°C to +80°C
- Actuator Types: Momentary, maintained, extended, flush, buttonless, with laser-etched lens options
- Color Options: Green, Red, White, Blue with various lens etchings
- Application Compatibility: Wash-down, hazardous, industrial automation environments
- Field convertibility: Pushbuttons and selector switches can be switched between momentary and maintained modes
Buy the Eaton Series C22 Pushbuttons: C22SDLGK10120
Order the Eaton C22SDLGK10120 pushbutton online today and enhance your control panel with reliable, rugged, and customizable industrial components. Designed for harsh environments, this pushbutton features LED lighting for up to 100,000 hours, IP65/IP66/IP67 ratings for wash-down and dust resistance, and laser-etched lenses for high durability. Its compact, ergonomic design simplifies installation and maintenance, while field convertibility allows switching between momentary and maintained modes in seconds. Perfect for safety, automation, and industrial control applications, this switch ensures long-lasting performance and ease of use for demanding environments.
Buy Eaton C22SDLGK10120 pushbutton with LED illumination now and experience unmatched durability, safety, and operational performance.
Frequently Asked Questions
Where can I buy Eaton Electronics C22SDLGK10120?
You can click on the BUY or RFQ button to purchase C22SDLGK10120 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part C22SDLGK10120?
You can download the C22SDLGK10120 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of C22SDLGK10120?
Eaton Electronics
