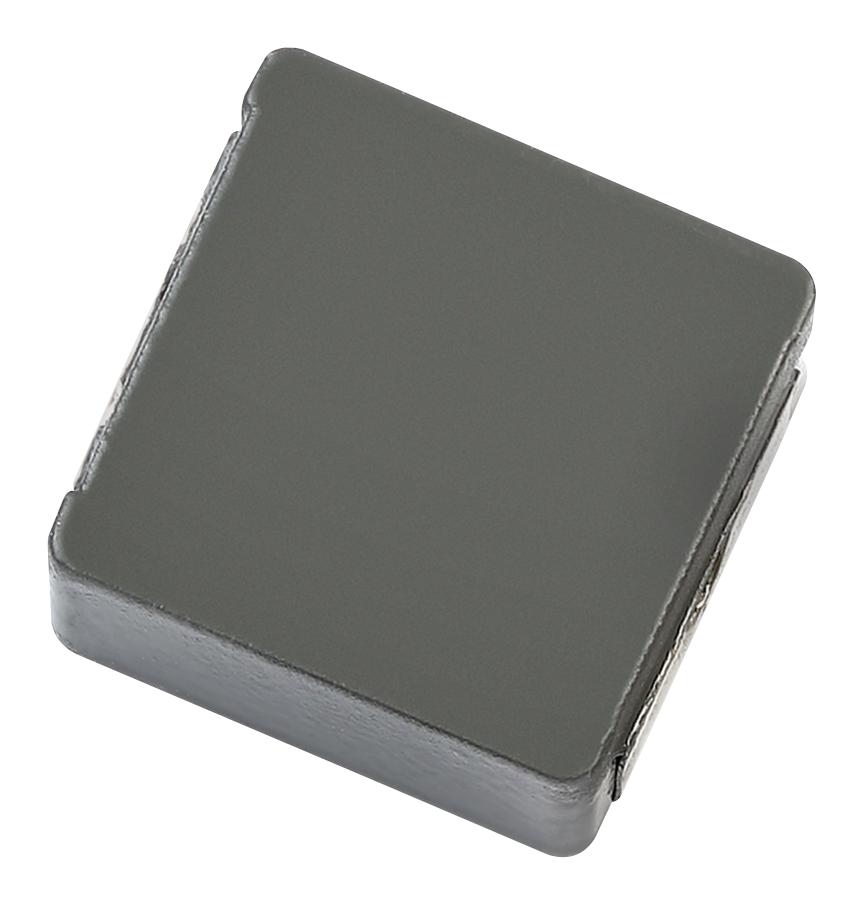

Eaton Electronics HCM1A0503R75R High Current Power Inductor
The HCM1A0503R75R is an automotive-grade high current power inductor designed for demanding electronic applications. Featuring magnetically shielded construction, it offers excellent high-current carrying capacity from 2.3 A to 24 A, and inductance values from 0.2 pH to 10 yH to suit various switching power supplies and automotive electronics. Its robust alloy powder core ensures low core loss and high thermal stability, making it ideal for body electronics, vehicle safety systems, and advanced driver assistance systems. The compact footprint of 5.5 mm x 5.3 mm and height of 3.0 mm facilitates surface-mount integration, while its RoHS compliance ensures environmentally conscious manufacturing.
Eaton Electronics HCM1A0503R75R High Current Power Inductor Specifications:
- Inductance range: 0.2 pH to 10 yH
- Current range: 2.3 A to 24 A
- Footprint: 5.5 mm x 5.3 mm surface mount
- Height: 3.0 mm
- Core material: Alloy powder
- Temperature range: -55 °C to +155 °C (operation), -55 °C to +155 °C (storage)
- Moisture Sensitivity Level: 1
- Compliance: Halogen free, lead free, RoHS
- Qualified as AEC-0200 Grade 1
- Frequency range up to 1 MHz
- Moisture sensitivity: Level 1
- Solder reflow temperature compliant to JSTD-020 standards
Buy the Buy Eaton High Current Power Inductor Part Number HCM1A0503R75R Online
Purchase the Eaton HCM1A0503R75R high current power inductor online to ensure top performance in automotive and industrial electronics. This robust and compact inductor offers high current capacity up to 24 A, low EMI, magnetic shielding, and environment-friendly RoHS compliance. Its surface-mount design with a footprint of 5.5 mm x 5.3 mm and a height of just 3.0 mm makes it ideal for space-constrained applications such as body electronics, safety systems, and advanced driver assistance systems. Secure your supply chain and benefit from Eaton's quality assurance today.
Order your Eaton SeriesHCM1A0503R75R high current automotive inductor today and ensure reliable power management in demanding electronic applications.
Frequently Asked Questions
Where can I buy Eaton Electronics HCM1A0503R75R?
You can click on the BUY or RFQ button to purchase HCM1A0503R75R from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part HCM1A0503R75R?
You can download the HCM1A0503R75R datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of HCM1A0503R75R?
Eaton Electronics
