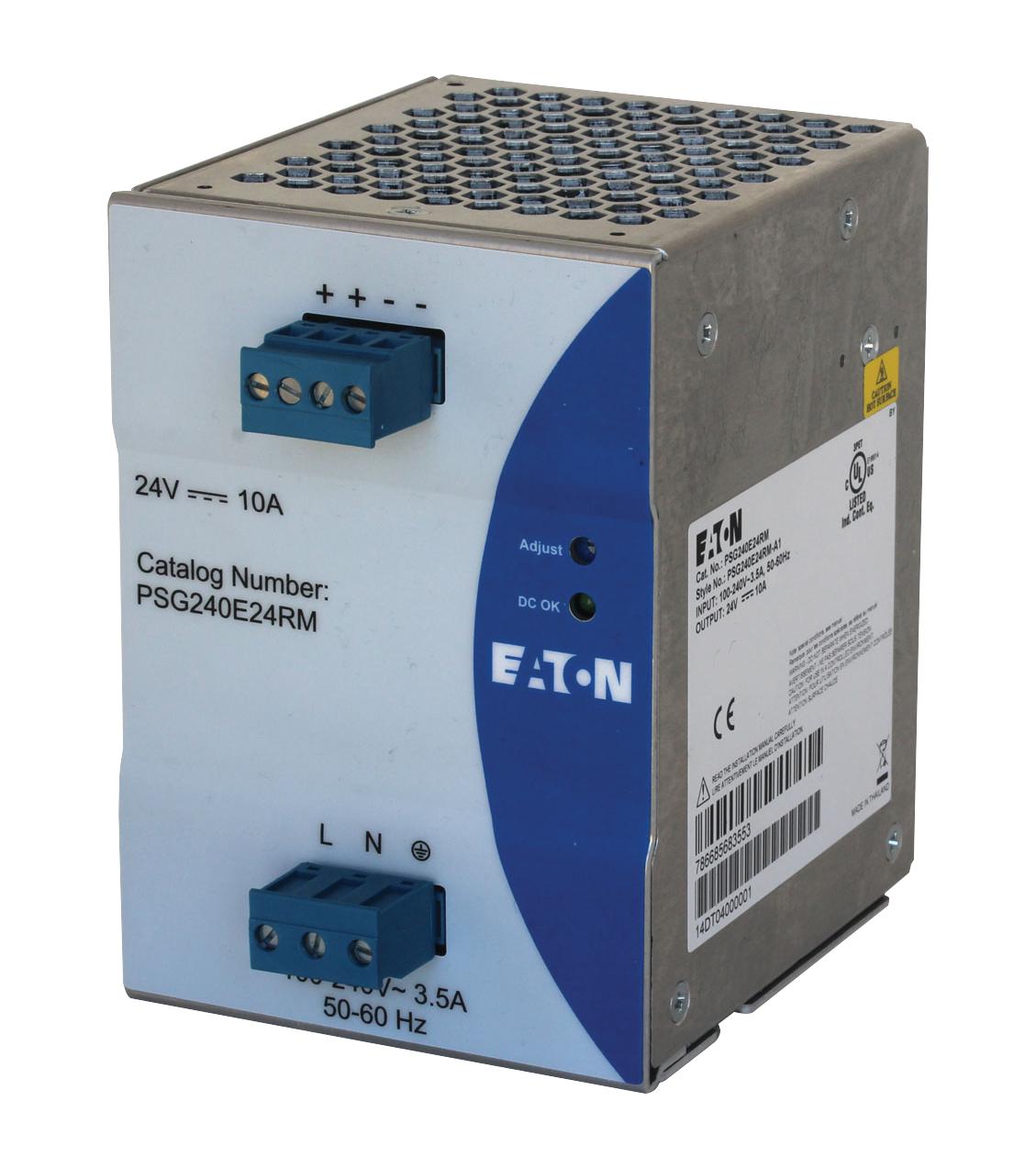

Eaton Electronics PSG240E24RM Industrial Power Supply
The PSG240E24RM is a compact, high-efficiency 1-phase power supply designed for industrial automation and control systems. It provides a robust 240W output with adjustable and fixed 24V DC options, ensuring reliable power delivery in challenging environments. Featuring all-metal DIN rail mounting, finger-safe terminals, overvoltage and overcurrent protection, it handles 150% surge currents, and operates from -20°C to 80°C with derating at high temperatures. Its comprehensive safety features and robust construction make it ideal for power management, process control, and ensuring continuous operation during power interruptions.
Eaton Electronics PSG240E24RM Industrial Power Supply Specifications:
- Input Voltage Range: 85-264V AC, 120-375V DC
- Output Voltage: 24V DC (±2%)
- Output Power: 240W
- Rated Output Current: 10A
- Efficiency: >90%
- Operating Temperature: -20°C to 80°C (derating above 50°C)
- Protection: Overvoltage, Overcurrent, Over-temperature, Short-circuit
- Surge Capability: 150% Power Surge Handling
- Mounting: DIN rail, all-metal housing
- Dimensions: Height 121mm, Width 85mm, Depth 124mm
- Weight: around 0.8kg
- Protection Class: IP20
- Standards: IEC 60204-1, EN 50178, EMC compliant
Buy the Buy Eaton Power Supply Part Number PSG240E24RM Online
Purchase the Eaton PSG240E24RM now for a high-performance, reliable power supply solution ideal for industrial automation. It offers 240W power, adjustable 24V DC output, DIN rail mounting, and comprehensive protections including overvoltage, overcurrent, and over-temperature. Designed to operate efficiently between -20°C and 80°C, it ensures continuous operation during power fluctuations and failures. This power supply's robust construction, ease of installation, and safety features make it an essential component for power management and process control applications.
Buy Eaton PSG240E24RM now and experience unmatched reliability and performance for industrial control power needs.
Frequently Asked Questions
Where can I buy Eaton Electronics PSG240E24RM?
You can click on the BUY or RFQ button to purchase PSG240E24RM from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part PSG240E24RM?
You can download the PSG240E24RM datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of PSG240E24RM?
Eaton Electronics
