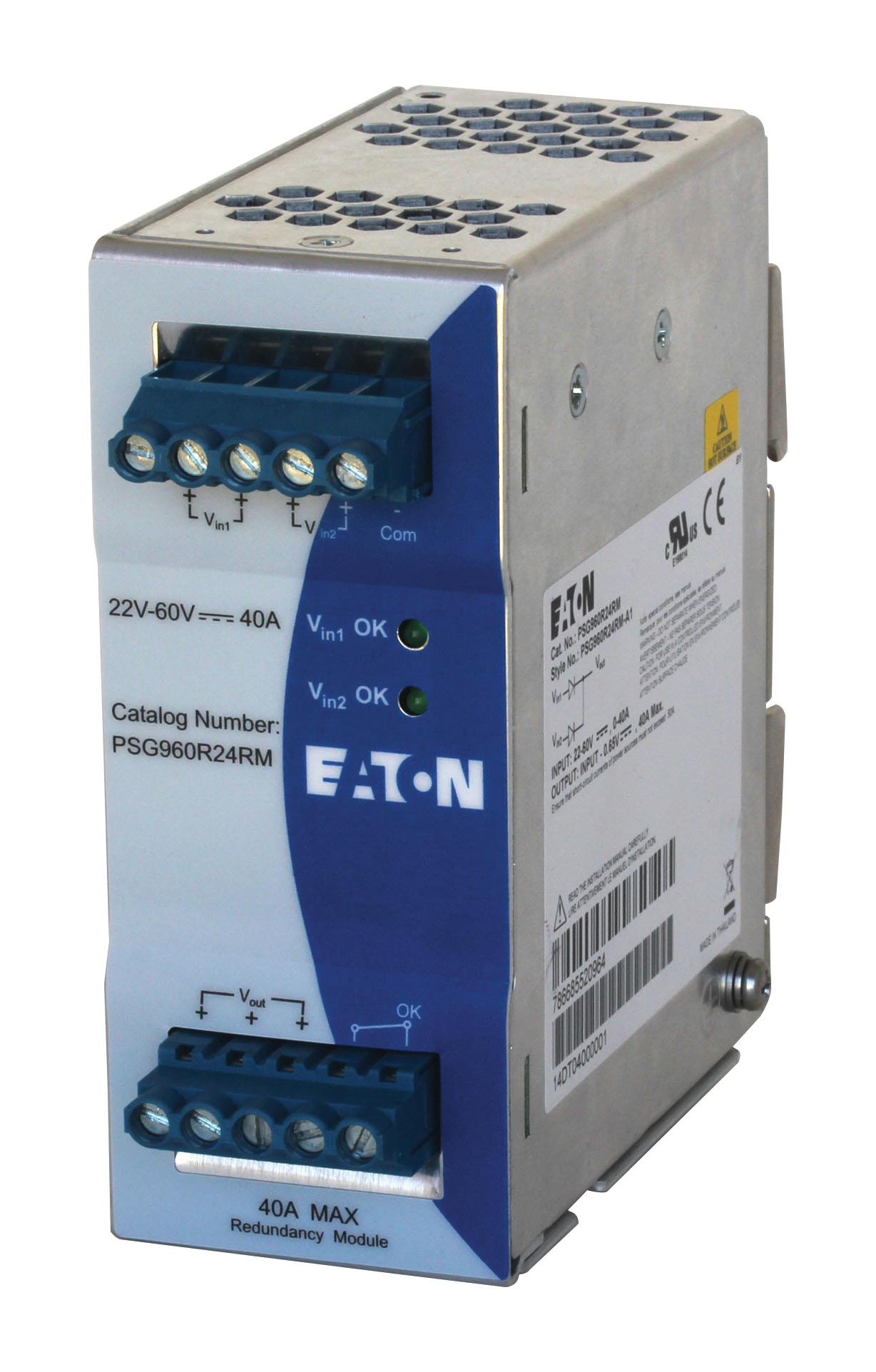

Eaton Electronics PSG960R24RM Redundancy Module
The PSG960R24RM is a redundancy module designed for power supply units, supporting reliable parallel operation for load sharing and backup. It is suitable for 22-60V DC systems with a current capacity of 40 A, equipped with relay contacts that indicate operational status. Made of durable aluminum housing, it features screw terminal connections for easy wiring, and its compact size (121 mm height, 50 mm width, 122 mm depth) ensures flexible installation. It maintains high efficiency at 97%, with excellent heat dissipation and MTBF exceeding 800,000 hours, ideal for industrial automation and power back-up systems.
Eaton Electronics PSG960R24RM Redundancy Module Specifications:
- Input voltage range: 22-60V DC
- Nominal input voltage: 24-48V DC
- Rated output voltage: 24-48V DC
- Rated output current: 40 A
- Housing material: Aluminum
- Dimensions: Height 121 mm, Width 50 mm, Depth 122 mm
- Terminal capacity: Screw connection, 3-53 mm (AWG 12 - 10)
- Efficiency: 97%
- MTBF: Over 800,000 hours
- Ambient air temperature range: -40°C to +80°C
- Protection class: Class II with PE connection
- Degree of protection: IP20
- Vibration resistance: 10-500 Hz, 30 m/s², 3 G (IEC/EN 60068-2-6)
- Mechanical shock resistance: 30 G for 60 min (IEC 60068-2-27)
- Pollution degree: 2
- Climatic class: 3K3 (EN 60721)
Buy the Buy Eaton Redundancy Module Part Number PSG960R24RM Online
Purchase the Eaton PSG960R24RM redundancy module online today to improve your power supply system’s reliability. Designed for 22-60V DC systems, it supports 40A load sharing with high efficiency and a robust aluminum housing. Easy screw terminal connections enable quick wiring, while its compact size facilitates flexible installation. With a MTBF exceeding 800,000 hours, this module ensures dependable performance in industrial environments. Perfect for automation, manufacturing, and backup power solutions, it guarantees safe and continuous operation with high-quality components and construction.
Buy Eaton PSG960R24RM now and enhance your power backup system with high reliability, durable design, and easy installation for industrial automation.
