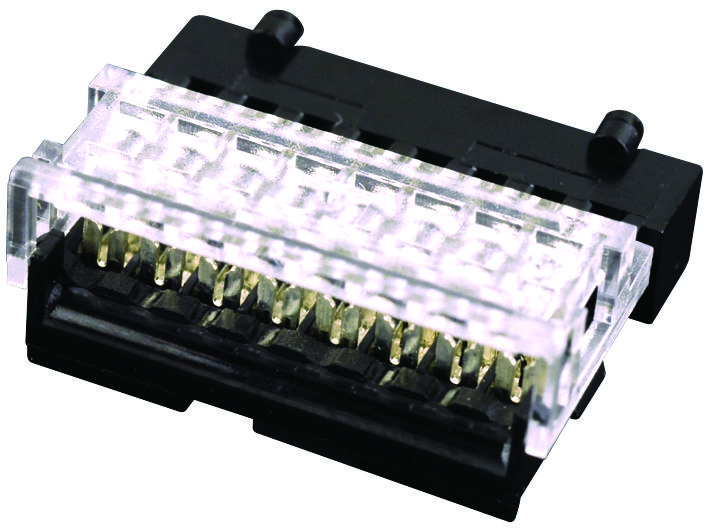

Eaton Electronics SWD48MF2 SmartWire-DT Connector
The SWD48MF2 is a high-quality flat cable connector designed for integration with SmartWire-DT systems. It provides reliable connection to motor starters, contactors, and control relays directly on top of XT contactors, facilitating simplified wiring and diagnostics. The module supports up to 99 nodes, automatically assigns addresses, and includes diagnostic LEDs for quick troubleshooting. It is compatible with various industrial fieldbuses, including EtherNet/IP, Modbus TCP, PROFIBUS-DP, and CANopen, making it ideal for sophisticated automation and control applications.
Eaton Electronics SWD48MF2 SmartWire-DT Connector Specifications:
- Supports up to 99 nodes on EtherNet/IP, CANopen, and PROFIBUS-DP networks
- Maximum network length of 2000 ft
- Automatically assigns node addresses with push of a button
- Supports 24 Vdc control power supply over the network
- Includes diagnostic LEDs for each node
- Compatible with XT contactors and control relays
- Eliminates traditional point-to-point wiring
- Supports industrial fieldbus protocols: EtherNet/IP, Modbus TCP, PROFIBUS-DP, CANopen
- Connector type: Flat cable with specialized connectors
- Material: High-quality insulation and mechanical durability for industrial environments
- Operating temperature range: -25°C to +70°C
- Certifications: UL, cUL, CE, RoHS compliant
- Dimensions: Standard connector size for compact installation
- Electrical rating: Optimized for industrial control voltage levels
Buy the Eaton Series SmartWire-DT: SWD48MF2
Enhance your control system with the Eaton SmartWire-DT connector SWD48MF2, supporting up to 99 nodes and featuring integrated diagnostics. Designed for direct connection to XT contactors and relays, it simplifies wiring, reduces faults, and speeds up commissioning. Compatible with major fieldbus protocols like EtherNet/IP, Modbus TCP, PROFIBUS-DP, and CANopen, this connector ensures reliable, scalable automation solutions. Its rugged build meets industry standards, making it ideal for industrial environments requiring robust, efficient wiring solutions.
Get Eaton SWD48MF2 today—built for precision and long-lasting durability in industrial control wiring.
Frequently Asked Questions
Where can I buy Eaton Electronics SWD48MF2?
You can click on the BUY or RFQ button to purchase SWD48MF2 from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part SWD48MF2?
You can download the SWD48MF2 datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of SWD48MF2?
Eaton Electronics
