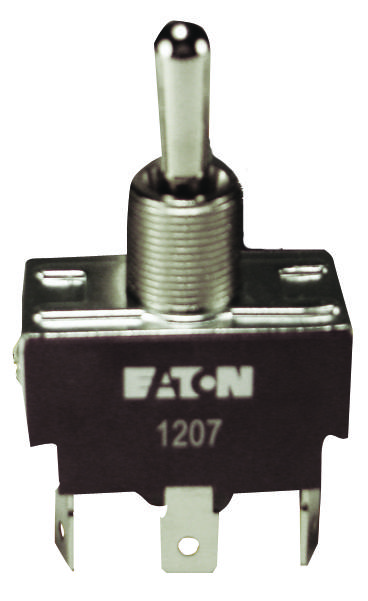

Eaton Electronics XTD2G1A Toggle Switch
The XT series toggle switch provides a high-rating, durable switching solution suitable for both single and double-pole applications. It offers a variety of switching circuits, functions, and accessories to meet diverse industrial, commercial, and aerospace needs. Ratings include 20A at 125VAC and 10A at 277VAC, capable of handling demanding inductive, motor, and lamp loads. The switch features a high horsepower rating of 1½ HP from 125 to 250VAC for double-pole use. Designed for easy installation, it has an industry-standard 0.480-inch diameter mounting hole. The switch has an IP40 protection rating at sea level and operates within a temperature range of -40°C to +65°C. It is suitable for applications in defense, military, aerospace, automation, medical, signaling, communications, testing, and industrial sectors.
Eaton Electronics XTD2G1A Toggle Switch Specifications:
- Rating: 20A at 125VAC, 10A at 277VAC
- Horsepower: 1½ HP from 125 to 250VAC
- Circuits: PST, 1PDT, 2PST, 2PDT
- Terminal Types: Brass screw, brass solder lugs, brass nickel-plated 0.250-inch spade
- Mounting Hole Diameter: 0.480 inches
- Material: Thermoset molding material
- Finish: Bright nickel-plated toggle lever and bushing
- Contact Resistance: 50 ohm max
- Dielectric Strength: 1500 V AC, 1 min
- Operating Temperature: -40°C to +65°C
- Insulation Resistance: 100 MΩ at 500 V DC
- Protection Rating: IP40 at sea level
Buy the Eaton Series XT Switch: XTD2G1A
Order the Eaton XT series toggle switch XTD2G1A online today to benefit from superior durability, high current ratings, and versatile circuit options suitable for industrial, medical, aerospace, and automation projects. This easy-to-install switch features industry-standard dimensions and a bright nickel-plated finish, ensuring long-lasting performance. With ratings of 20A at 125VAC and 10A at 277VAC, it handles demanding loads efficiently. Its wide operating temperature range and IP40 protection rating make it ideal for harsh environments. Purchase online now for quick delivery and dependable operation.
Buy Eaton XT series toggle switch XTD2G1A now and experience unmatched reliability and performance for demanding industrial and aerospace applications.
Frequently Asked Questions
Where can I buy Eaton Electronics XTD2G1A?
You can click on the BUY or RFQ button to purchase XTD2G1A from an authorized Eaton Electronics distributor.
How do I troubleshoot issues or seek technical support for part XTD2G1A?
You can download the XTD2G1A datasheet or visit the Eaton Electronics website for support.
Who is the manufacturer of XTD2G1A?
Eaton Electronics
