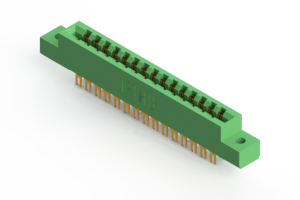

EDAC 305030500202 Card Edge Connector
This is a card edge connector featuring a contact spacing of 0.156 inches (3.96 mm) and a total of 30 contacts. It has wire hole tail sizes of 0.087 inches by 0.013 inches (2.21 mm by 0.33 mm) and a tail length of 0.282 inches (7.16 mm). The connector includes mounting options with 0.128-inch (3.25 mm) diameter mounting holes for secure installation. Made of UL 94V-0 thermoplastic polyester, it supports current ratings up to 5 amperes and operates within -40°C to +105°C, with low contact resistance and dielectric withstand voltage suitable for various circuit applications.
EDAC 305030500202 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: 5 Amperes
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstand Voltage: 1800 VAC rms at sea level between contacts
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 1607 (4.45N) max per contact pair
- Withdrawal Force: 1 oz (0.28N) min per contact pair
- Contact Tails: 0.087 in x 0.013 in (2.21 mm x 0.33 mm), Tail Length: 0.282 in (7.16 mm)
- Mounting Holes Diameter: 0.128 in (3.25 mm)
- Number of Contacts: 30
- Contact Spacing: 0.156 in (3.96 mm)
- Row Spacing: 0.140 in (3.56 mm)
- Accepts P.C. Boards: 0.062 in (1.57 mm) thickness
- RoHS Compliant & UL Certified
