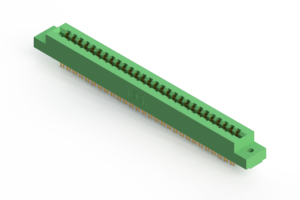

EDAC 305056500202 Card Edge Connector
This is a high-quality card edge connector designed for reliable electrical connections in electronic assemblies. It features a contact pitch of 0.156 inches (3.96 mm), accommodating up to 56 contacts in dual row configuration, suitable for PC boards with 0.062-inch (1.57 mm) thickness. The connector has a low-profile insulator body measuring 0.470 inches (11.94 mm), with gold plating on mating areas and tin on tails for corrosion resistance. Mounting options include mounting holes with a diameter of 0.128 inches (3.25 mm), and it complies with RoHS standards and UL certification. Its durable thermoplastic insulator and copper alloy contacts ensure optimal performance across a temperature range of -40°C to +105°C, with a contact resistance below 10 milliohms and dielectric withstand voltage of 1800 V AC rms.
EDAC 305056500202 Card Edge Connector Specifications:
- Contact Pitch: 0.156 inches (3.96 mm)
- Number of Contacts: 56
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating areas, Tin on tails with Nickel underplating
- Tails: Wire hole, 0.087 inches x 0.013 inches (2.21 mm x 0.33 mm), Tail Length: 0.282 inches (7.16 mm)
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Body Height: 0.470 inches (11.94 mm)
- Mounting Holes: 2 holes, Diameter: 0.128 inches (3.25 mm)
- Current Rating: Not specified, typical application-dependent
- Dielectric Withstanding Voltage: 1800 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature Range: -40°C to +105°C
- Contact Resistance: 10 milliohms maximum
- RoHS and UL Certified
- Mounting Options: Holes with No Mounting Lug, Offset Card Guides, Floating Eyelets, Threaded Inserts
