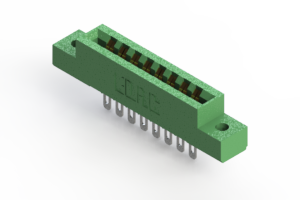

EDAC 306008500102 Card Edge Connector
The EDAC 306-008-500-102 card edge connector is designed for reliable card edge connections with a 0.156" (3.96mm) contact spacing. It accommodates 0.062" (1.57mm) thick P.C. boards and provides a low-profile insulator body. The connector offers versatile mounting options, including no mounting lugs, threaded inserts, and floating eyelets, making it suitable for a wide range of industrial applications. RoHS compliant and UL certified, this connector ensures both performance and environmental responsibility.
EDAC 306008500102 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
