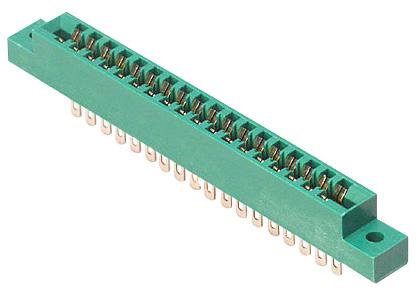

EDAC 306018500102 Card Edge Connector
This advanced card edge connector offers a 0.156-inch (3.96 mm) pitch with 18 contacts, featuring gold and tin plated copper alloy contacts. It supports a maximum current of 5 Amperes, with a contact resistance of 10 milliohms and dielectric withstand voltage of 1800 VAC rms. Constructed with UL 94V-0 thermoplastic polyester, it includes various mounting options such as mounting holes, floating eyelets, and offset guides, making it suitable for precise electronic applications requiring reliable connection, high insulation resistance, and temperature operation from -40°C to +105°C.
EDAC 306018500102 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: 5 Amperes
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstand Voltage: 1800 VAC rms at sea level
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: ~40°C to +105°C
- Insertion Force: 1602 (4.45N) max per contact pair
- Withdrawal Force: loz (0.28N) min per contact pair
- Contact Pitch: 0.156 inches (3.96 mm)
- Total Contacts: 18
- Wire Hole Size: 0.087 x 0.015 inches (2.21 x 0.38 mm)
- Tail Length: 0.282 inches (7.16 mm)
- Mounting Holes: 0.128 inches (3.25 mm) diameter
Buy the Edac Series 306 Card Edge Connector: 306018500102
Purchase the Edac Series 306018500102 card edge connector online today. Designed with a 0.156-inch pitch, 18 contacts, gold and tin plating for durability. Features multiple mounting options, UL certification, and supports temperature ranges from -40°C to +105°C. This connector ensures reliable, efficient connections in compact electronic assemblies. Its high dielectric withstand voltage and low contact resistance make it ideal for professional applications, providing long-term stability, ease of installation, and compliance with industry standards. Order now to enhance your electronic projects with quality assured connectors.
Get Edac Series 306018500102 today—built for precision and long-lasting durability with multiple mounting options for reliable electronic connections.
