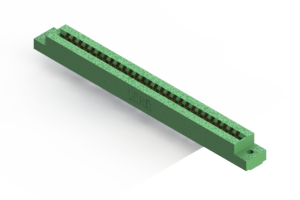

EDAC 306028520102 Card Edge Connector
This card edge connector features a contact spacing of 0.156 inches (3.96 mm) and supports 28 contacts. It has a tail size of 0.046 x 0.015 inches (1.17 x 0.38 mm), a tail length of 0.213 inches (5.41 mm), and mounting holes with a diameter of 0.128 inches (3.25 mm). Made from UL 94V-0 thermoplastic polyester, it offers reliable contact resistance, dielectric withstand voltage up to 1800 V AC rms, and operates within -40°C to +105°C. Suitable for portable and industrial applications requiring durable edge connectors.
EDAC 306028520102 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Contact Resistance: 10 milliohms max
- Dielectric Withstanding Voltage: 1800 V AC rms
- Insulation Resistance: 5000 megaohms min
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) max per contact pair
- Withdrawal Force: 1 oz (0.28 N) min per contact pair
- Mounting Hole Diameter: 0.128 inches (3.25 mm)
- Number of Contacts: 28
- Tail Size: 0.046 x 0.015 inches (1.17 x 0.38 mm)
- Tail Length: 0.213 inches (5.41 mm)
- Series: 306
- Part Number: 306028520102
- RoHS Compliant: Yes
- UL Certified: Yes
- Contact Spacing: 0.156 inches (3.96 mm)
- Max Operating Temperature: 105°C
