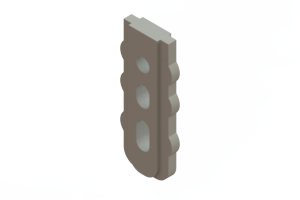

EDAC 306240318 Polarizing Key
The 306-240-318 is a polarizing key designed for use with the 700 series Ultra-Mate card edge connector, ensuring proper alignment and secure contact. It provides reliable polarization between contacts, preventing misconnection in industrial electronic assemblies. Crafted from high-quality thermoplastic polyester with UL 94V-0 flame rating, it withstands operating temperatures from approximately -40°C to +105°C. The key features include precise dimensions, compatibility with various mounting options, and robust material properties for durability and safety in demanding environments.
EDAC 306240318 Polarizing Key Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Operating Temperature: ~40°C to +105°C
- Material: Copper Alloy (contact), Gold and Tin Plating (mating area and tails)
- Current Rating: 5 Amperes
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstand Voltage: 1800 VAC rms
- Insulation Resistance: Minimum 5000 Megaohms
- Contact Termination Options: P.C. Tail and Wire Hole
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Dimensions (approximate): 6.35mm diameter hole, 11.68mm insulator height, 3.18mm wide contact width
- Compatible with various mounting options including floating eyelets and threaded inserts
- RoHS compliant and UL certified
Buy the Edac 306240318 – Reliable Polarizing Key for Industrial Applications
Purchase the Edac 306240318 polarizing key today and ensure optimal alignment and secure connection for your industrial card edge connectors. Designed from high-quality materials, this component offers exceptional durability, reliable performance, and compatibility with various mounting options. Its precise dimensions and robust construction make it ideal for demanding industrial environments, preventing misconnection issues. Secure your electronic assemblies with confidence—order online now to benefit from fast shipping, competitive prices, and quality assurance, ensuring your projects stay on track and achieve peak performance.
Get Edac 306240318 today—built for precise polarization and long-lasting durability in industrial electronic systems.
Frequently Asked Questions
Where can I buy EDAC 306240318?
You can click on the BUY or RFQ button to purchase 306240318 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 306240318?
You can download the 306240318 datasheet or visit the EDAC website for support.
Who is the manufacturer of 306240318?
EDAC
