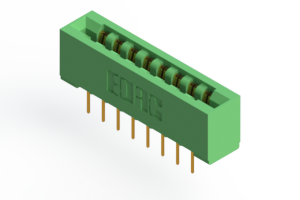

EDAC 307016524201 Card Edge Connector
The EDAC 307-016-524-201 is a card edge connector suitable for a wide range of applications requiring secure and reliable board connections. It boasts a 0.156" (3.96mm) contact spacing and 0.200" (5.08mm) row spacing, accepting nominal 0.062" (1.57mm) thickness P.C. board. The connector offers versatile termination options including P.C. tail, wire hole, wire wrap, 90° bends, and extender board bends. Its low-profile design and availability in single or dual row configurations make it adaptable to various system layouts. RoHS compliant and UL certified, this connector ensures both performance and environmental responsibility.
EDAC 307016524201 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
