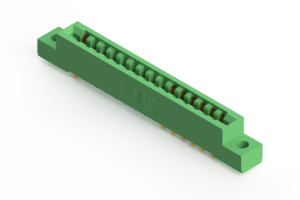

EDAC 307030520202 Card Edge Connector
This high-performance card edge connector offers a 0.156-inch (3.96 mm) pitch and 30 contacts, suitable for various industrial and electronic applications. It features a low-profile thermoplastic insulator with UL 94V-0 rating, gold and tin plating on contacts, and a current rating of 5A. The connector supports multiple mounting options including mounting holes, floating eyelets, and threaded inserts, ensuring flexible integration. Compatible with PC boards up to 0.070 inches thick, it withstands voltage up to 1800VAC, with contact resistance below 10 milliohms, operating reliably from -40°C to +105°C.
EDAC 307030520202 Card Edge Connector Specifications:
- Contact Spacing: 0.156 inches (3.96 mm)
- Number of Contacts: 30
- Tail Size: 0.046 x 0.013 inches (1.17 x 0.33 mm)
- Tail Length: 0.213 inches (5.41 mm)
- Mounting Options: 0.128-inch (3.25 mm) diameter mounting holes, floating eyelets, threaded inserts
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: 5A
- Voltage Withstanding: 1800VAC rms
- Contact Resistance: 10 milliohms maximum
- Operating Temperature: -40°C to +105°C
- Resistance: Insulation resistance Minimum 5000 Megaohms
Buy the EDAC 307030520202 – Reliable Card Edge Connector for Industrial Applications
Secure your electronic assembly with this high-quality card edge connector featuring a 0.156-inch pitch and 30 contacts. It includes versatile mounting options like mounting holes, floating eyelets, and threaded inserts for easy installation in industrial systems. Crafted from UL 94V-0 thermoplastic, it has gold and tin-plated contacts rated for 5A with a voltage withstand of 1800VAC. Designed to operate from -40°C to +105°C, this connector ensures durable and reliable electrical connections for your critical applications, available for quick online purchase.
Buy EDAC 307030520202 now and experience unmatched reliability and performance in electronic device connections with flexible mounting options.
Frequently Asked Questions
Where can I buy EDAC 307030520202?
You can click on the BUY or RFQ button to purchase 307030520202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 307030520202?
You can download the 307030520202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 307030520202?
EDAC
