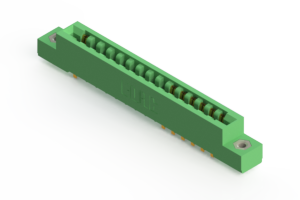

EDAC 307030520208 Card Edge Connector
The EDAC 307-030-520-208 card edge connector is a precision-engineered component designed for secure and reliable connection of printed circuit boards. Featuring a 0.156" (3.96mm) contact spacing and 0.200" (5.08mm) row spacing, this connector accepts nominal 0.062" (1.57mm) thickness P.C. board. Its low-profile insulator body and versatile contact termination options, including P.C. tail, wire hole, and extender board bends, make it suitable for diverse industrial applications. The connector is RoHS compliant and UL certified, ensuring adherence to industry standards. Available in single or dual row configurations with various mounting options, the 307-030-520-208 provides flexibility and ease of integration into electronic systems.
EDAC 307030520208 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 5 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1800 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair
Buy the 307-030-520-208 EDAC Card Edge Connector | myMectronic
Purchase the EDAC 307-030-520-208 Card Edge Connector securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy EDAC 307030520208?
You can click on the BUY or RFQ button to purchase 307030520208 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 307030520208?
You can download the 307030520208 datasheet or visit the EDAC website for support.
Who is the manufacturer of 307030520208?
EDAC
