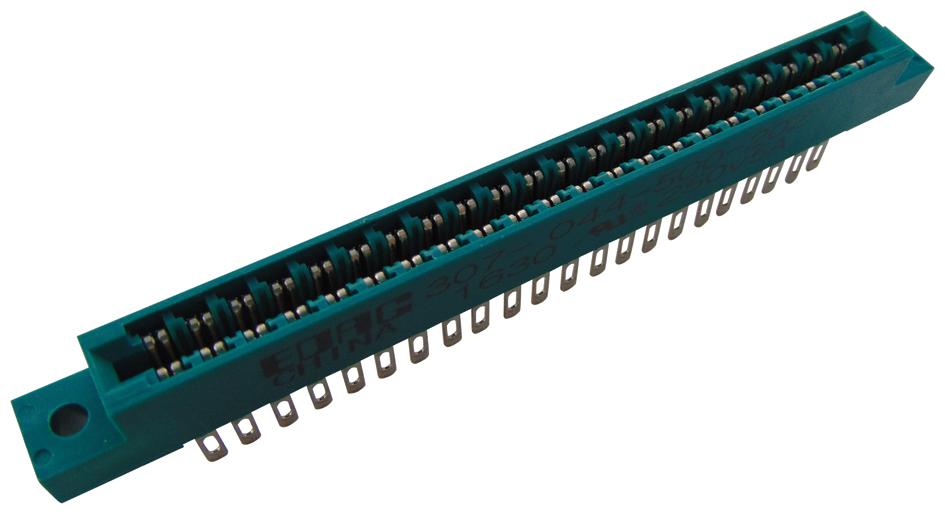

EDAC 307044500202 Card Edge Connector
This high-quality card edge connector features a 0.156-inch (3.96 mm) pitch and supports up to 44 contacts, making it ideal for precise, reliable connections in electronic applications. It accepts .054 (1.37) to .070 (1.78) thick P.C. boards and offers versatile mounting options including mounting holes, threaded inserts, and floating eyelets. Made from UL 94V-0 thermoplastic polyester with gold-plated contacts, it provides high current capacity up to 5A, low contact resistance of 10 milliohms, and withstands voltages up to 1800VAC rms. Operating temperature ranges from -40°C to +105°C, ensuring durability in various environments.
EDAC 307044500202 Card Edge Connector Specifications:
- Contact Spacing: 0.156 inches (3.96 mm)
- Number of Contacts: 44
- Contact Material: Copper Alloy with Gold Plating on mating area, Tin Plating on tails
- Tail Size: 0.087 x 0.013 inches (2.21 x 0.33 mm)
- Tail Length: 0.282 inches (7.16 mm)
- Mounting Options: 0.128-inch (3.25 mm) diameter mounting holes, threaded inserts, floating eyelets
- Wire Hole Size: 0.087 x 0.013 inches (2.21 x 0.33 mm)
- Current Rating: 5A continuous
- Withstand Voltage: 1800VAC rms
- Insulation Resistance: 5000 Megaohms minimum
- Contact Resistance: 10 milliohms maximum
- Operating Temperature Range: -40°C to +105°C
- Material: UL 94V-0 Thermoplastic Polyester
- RoHS Compliant: Yes
- UL Certified: Yes
Buy the EDAC Series Card Edge Connector: 307044500202
Secure your electronic assembly with this dependable card edge connector featuring 44 contacts, a 0.156-inch pitch, multiple mounting options, and gold-plated contacts. Designed to support up to 5A continuous current, it withstands high voltages up to 1800VAC rms and operates efficiently from -40°C to +105°C. Its versatile mounting options include mounting holes, threaded inserts, and floating eyelets, making it suitable for diverse applications. Order online today to benefit from reliable quality and fast delivery for your manufacturing or prototyping needs.
Order your EDAC Series Card Edge Connector 307044500202 today and ensure reliable, high-quality connections for your electronic projects.
