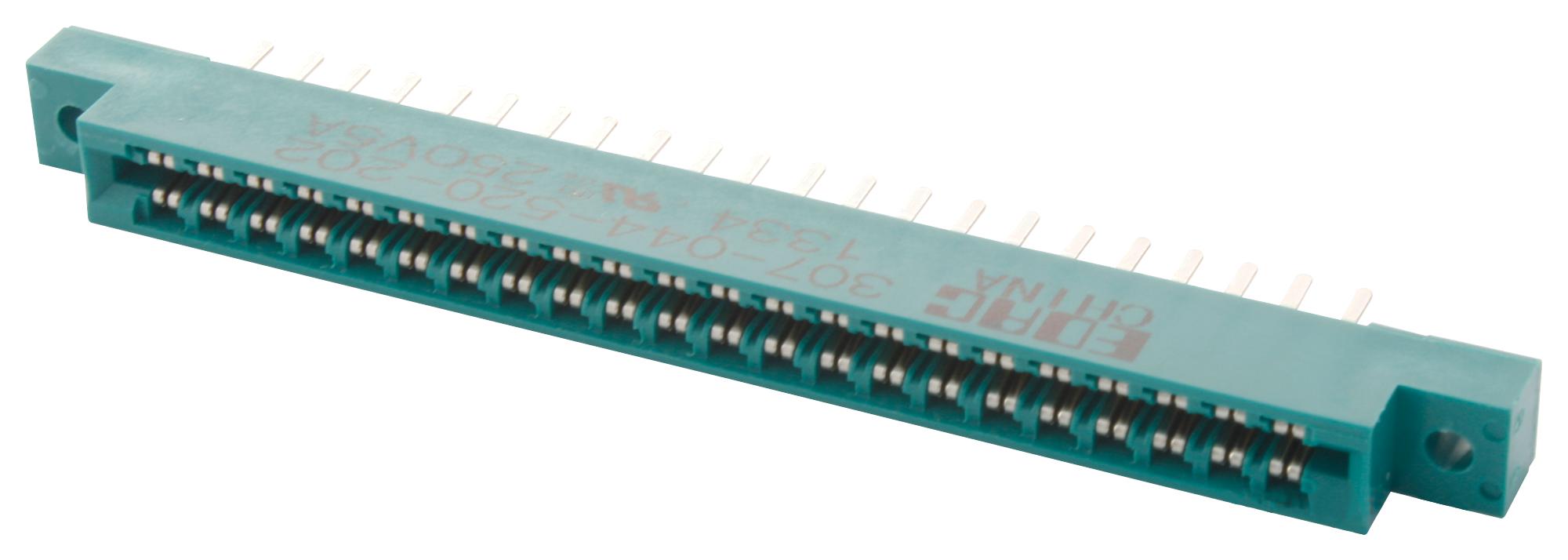

EDAC 307044520202 Card Edge Connector
This card edge connector features a contact spacing of 0.156 inches (3.96 mm) and includes a total of 44 contacts. The tail size is 0.046 inches by 0.013 inches (1.17 mm x 0.33 mm), with a tail length of 0.213 inches (5.41 mm). It offers mounting options with 0.128 inch (3.25 mm) diameter mounting holes. Made from UL 94V-0 thermoplastic polyester, it supports current ratings of 5A, with a maximum contact resistance of 10 milliohms and withstand voltage of 1800VAC rms. Suitable for low-profile applications, operating at -40°C to +105°C, with various contact termination options including P.C. Tail, Wire Hole, Wrap, and 90° bends.
EDAC 307044520202 Card Edge Connector Specifications:
- Contact Spacing: 0.156 inches (3.96 mm)
- Total Number of Contacts: 44
- Tail Size: 0.046 inches x 0.013 inches (1.17 mm x 0.33 mm)
- Tail Length: 0.213 inches (5.41 mm)
- Mounting Holes: 0.128 inches (3.25 mm) diameter
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: 5A
- Contact Resistance: 10 milliohms maximum
- Withstand Voltage: 1800VAC rms
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Mounting Features: Various mounting options including mounting holes and floating eyelets
Buy the Edac 307044520202 – Reliable Card Edge Connectors for Industrial Applications
Order the high-quality card edge connector online today and enhance your electronic assembly with this precise, durable, and versatile component. Featuring multiple mounting options and robust electrical performance, it is ideal for industrial, automation, and manufacturing applications requiring reliable PCB-to-boards connections. Easy to install and compliant with RoHS standards, this connector ensures optimal performance across temperatures from -40°C to +105°C. Secure your order now for quick delivery and superior connectivity in your projects.
Buy Edac 307044520202 now and experience unmatched reliability and performance for PCB and daughterboard connections.
Frequently Asked Questions
Where can I buy EDAC 307044520202?
You can click on the BUY or RFQ button to purchase 307044520202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 307044520202?
You can download the 307044520202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 307044520202?
EDAC
