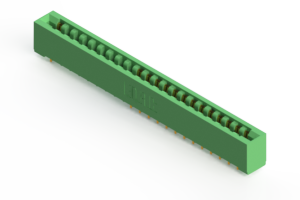

EDAC 307044524201 Card Edge Connector
This is a high-performance card edge connector with a 0.156-inch (3.96mm) pitch, designed for reliable connection in electronic systems. It features multiple contact termination options, including P.C. tail, wire hole, wire wrap, and 90° bends, supporting single and dual row configurations. Constructed with UL 94V-0 thermoplastic polyester insulator material, copper alloy contacts, and gold and tin plating for corrosion resistance. Capable of handling up to 5 amps, with dielectric withstand voltage of 1800 V AC rms, making it ideal for sophisticated PCB applications requiring durable, RoHS compliant connectors.
EDAC 307044524201 Card Edge Connector Specifications:
- Pitch: 0.156 inches (3.96mm)
- Contact Count: 44 contacts
- PCB Tail Size: 0.023 x 0.013 inches (0.58 x 0.33 mm)
- Tail Length: 0.213 inches (5.41 mm)
- Insulator Material: UL 94V-0 thermoplastic polyester
- Contact Material: Copper alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: 5 amps
- Dielectric Withstanding Voltage: 1800 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Contact Resistance: 10 milliohms maximum
- Operating Temperature: -40°C to +105°C
Buy the Buy Edac Card Edge Connector Part Number 307044524201 Online
Purchase the Edac Card Edge Connector online today to ensure secure and reliable connections in your electronic projects. Featuring a 0.156-inch pitch, support for various mounting options, and gold-tin plated contacts, this connector is suitable for high-density applications. Its 5-amp current capacity, dielectric withstand voltage of 1800 V, and UL71V-0 thermoplastic insulation make it perfect for demanding environments. Easy to install with optional mounting lugs, it guarantees durability and compliance with RoHS standards, improving your device’s performance and longevity.
Buy Edac 307044524201 now and experience unmatched reliability and performance in electronic PCB connections.
Frequently Asked Questions
Where can I buy EDAC 307044524201?
You can click on the BUY or RFQ button to purchase 307044524201 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 307044524201?
You can download the 307044524201 datasheet or visit the EDAC website for support.
Who is the manufacturer of 307044524201?
EDAC
