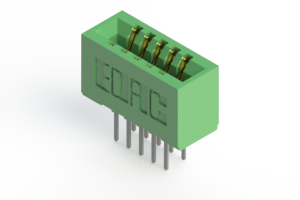

EDAC 341010521201 Card Edge Connector
The EDAC 341/391 series card edge connectors are designed for reliable board-to-board connections. These connectors offer a 0.100" (3.96mm) pitch and are suitable for applications requiring a low-profile design and versatile mounting options. They accept 0.062" (1.57mm) nominal thickness P.C. board and feature a thermoplastic polyester insulator body. Available in single or dual row configurations, these connectors are ideal for a wide range of industrial and commercial applications where secure and efficient card edge connections are needed.
EDAC 341010521201 Card Edge Connector Specifications:
- contact_spacing: 0.156" (3.96mm)
- row_spacing: 0.200" (5.08mm)
- pc_board_thickness: 0.062" (1.57mm)
- insulator_body_height: 0.473" (12.01mm)
- contact_termination: 0.045" (1.14mm) square wire wrap
- configurations: Single or dual row
- mounting_options: Variety of options available
- insulator_material: UL 94V-0 Thermoplastic Polyester
- contact_material: Copper Alloy
- contact_plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- current_rating: 3 amps
- contact_resistance: 10 milliohms maximum
- dielectric_withstanding_voltage: 1200 V AC rms at sea level between adjacent contacts
- insulation_resistance: 5000 megaohms minimum
- operating_temperature: -40°C to +105°C
- insertion_force: 16 oz (4.45 N) maximum per contact pair
- withdrawal_force: 1 oz (0.28 N) minimum per contact pair
