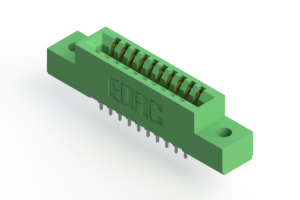

EDAC 341020520202 Card Edge Connector
This card edge connector provides a reliable connection with a 0.100-inch (2.54 mm) pitch, supporting up to 20 contacts in single or dual row configurations. It features a low-profile insulator body made of UL 94V-0 thermoplastic polyester, with gold plating on the mating area and tin plating on tails for corrosion resistance. The contact material is copper alloy, rated for 3 amps with a contact resistance of 10 milliohms maximum. It withstands voltages up to 1200 V AC, operates from -40°C to +105°C, and offers versatile mounting options including mounting holes with a 0.128-inch diameter. Suitable for circuit testing, PCB connections, and industrial applications, this connector ensures secure, durable connections in tight spaces with easy mounting and reliable electrical performance.
EDAC 341020520202 Card Edge Connector Specifications:
- Contact spacing: 0.100 inches (2.54 mm)
- Number of contacts: 20
- Tail size: 0.025 x 0.013 inches (0.64 x 0.33 mm)
- Tail length: 0.125 inches (3.18 mm)
- Mounting holes diameter: 0.128 inches (3.25 mm)
- Insulator material: UL 94V-0 thermoplastic polyester
- Contact material: Copper alloy
- Plating: Gold on mating area, tin on tails with nickel underplating
- Current rating: 3 amps
- Contact resistance: ≤10 milliohms
- Dielectric withstand voltage: 1200 V AC
- Insulation resistance: ≥5000 megohms
- Operating temperature: -40°C to +105°C
- Max insertion force: 16.07 (4.45 N), per contact pair
- Withdrawal force: ≥1 oz (0.28 N) per contact pair
- Mounting options include mounting holes, floating eyelets, threaded inserts, and more
- RoHS compliant
