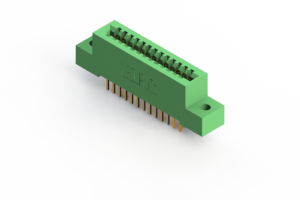

EDAC 342026541202 Card Edge Connector
This high-quality card edge connector features a 0.100-inch (2.54mm) pitch and accommodates 26 contacts, making it ideal for compact electronic modules. It offers wire wrap tails measuring 0.025 inches squared (0.64mm²) with a tail length of 0.760 inches (19.30mm). The insulator, made from UL 94V-0 thermoplastic polyester, supports operation from -40°C to +105°C and provides excellent dielectric resistance of 5000 megaohms minimum. The connector is designed with versatile mounting slots, 0.128 inches (3.25mm) wide, suitable for various installation options.
EDAC 342026541202 Card Edge Connector Specifications:
- Contact Spacing: 0.100 inches (2.54mm)
- Contact Range: 26 contacts
- Tail Size: 0.025 inches square (0.64mm²)
- Tail Length: 0.760 inches (19.30mm)
- Insulator Material: UL 94V-0 thermoplastic polyester
- Operating Temperature: -40°C to +105°C
- Dielectric Resistance: 5000 megaohms minimum
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplate
- Current Rating: 3 amps
- Contact Resistance: Max 10 milliohms
- Mounting Slots: 0.128 inches (3.25mm) wide
Buy the EDAC Series 342 Card Edge Connector: 342026541202
Purchase the EDAC Series 342 Card Edge Connector online today and ensure your project benefits from a durable, high-quality connection interface. With a 0.100-inch pitch and 26 contacts, this connector is perfect for compact, reliable electronic connections. Featuring wire wrap tails of 0.025 inches squared and a tail length of 0.760 inches, it supports versatile mounting options with 0.128-inch-wide slots, providing flexibility for various assembly needs. Invest now for dependable performance and quality in your designs.
Order your EDAC Series 342 Card Edge Connector today and enhance your electronic assemblies with reliable, high-performance connection solutions.
