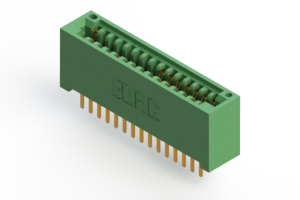

EDAC 345030520201 Card Edge Connector
This card edge connector with a 0.100-inch (2.54mm) contact spacing supports 30 contacts and is suitable for PCB connections. It features a P.C. tail size of 0.030 x 0.018 inches (0.76 x 0.46 mm) and a tail length of 0.175 inches (4.45 mm). Designed for versatile PCB applications, it offers various mounting options including no mounting lugs, through holes, and floating eyelets. Made from UL 94V-0 thermoplastic polyester, it is RoHS compliant and UL certified, with a maximum current rating and dielectric withstand voltage suitable for demanding electronic environments.
EDAC 345030520201 Card Edge Connector Specifications:
- Contact spacing: 0.100 inches (2.54mm)
- Number of contacts: 30
- P.C. tail size: 0.030 x 0.018 inches (0.76 x 0.46 mm)
- Tail length: 0.175 inches (4.45 mm)
- Insulator Material: UL 94V-0 thermoplastic polyester
- Contact Material: Copper alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Current Rating: Suitable for electronic applications
- Dielectric Withstanding Voltage: 1200 V AC rms at sea level
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature Range: -40°C to +105°C
- Insertion Force: Max 16 oz (4.45 N) per contact pair
- Withdrawal Force: Min 1 oz (0.28 N) per contact pair
- Mounting Options: None specified, various mounting configurations available
- RoHS Compliant & UL Certified
Buy the Edac 345030520201 – Reliable Card Edge Connector for Industrial Applications
Purchase the Edac 345030520201 card edge connector online today to ensure reliable connections in your electronic projects. This connector features a 0.100-inch contact pitch, supports 30 contacts, and is made from UL 94V-0 thermoplastic polyester, ensuring safety and durability. Suitable for various mounting options, it is RoHS compliant and UL certified, making it ideal for industrial and high-reliability applications. Enjoy fast shipping and expert support when you order this high-performance connector online.
Buy Edac 345030520201 now and experience unmatched reliability and performance with our high-quality PCB card edge connectors.
Frequently Asked Questions
Where can I buy EDAC 345030520201?
You can click on the BUY or RFQ button to purchase 345030520201 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 345030520201?
You can download the 345030520201 datasheet or visit the EDAC website for support.
Who is the manufacturer of 345030520201?
EDAC
