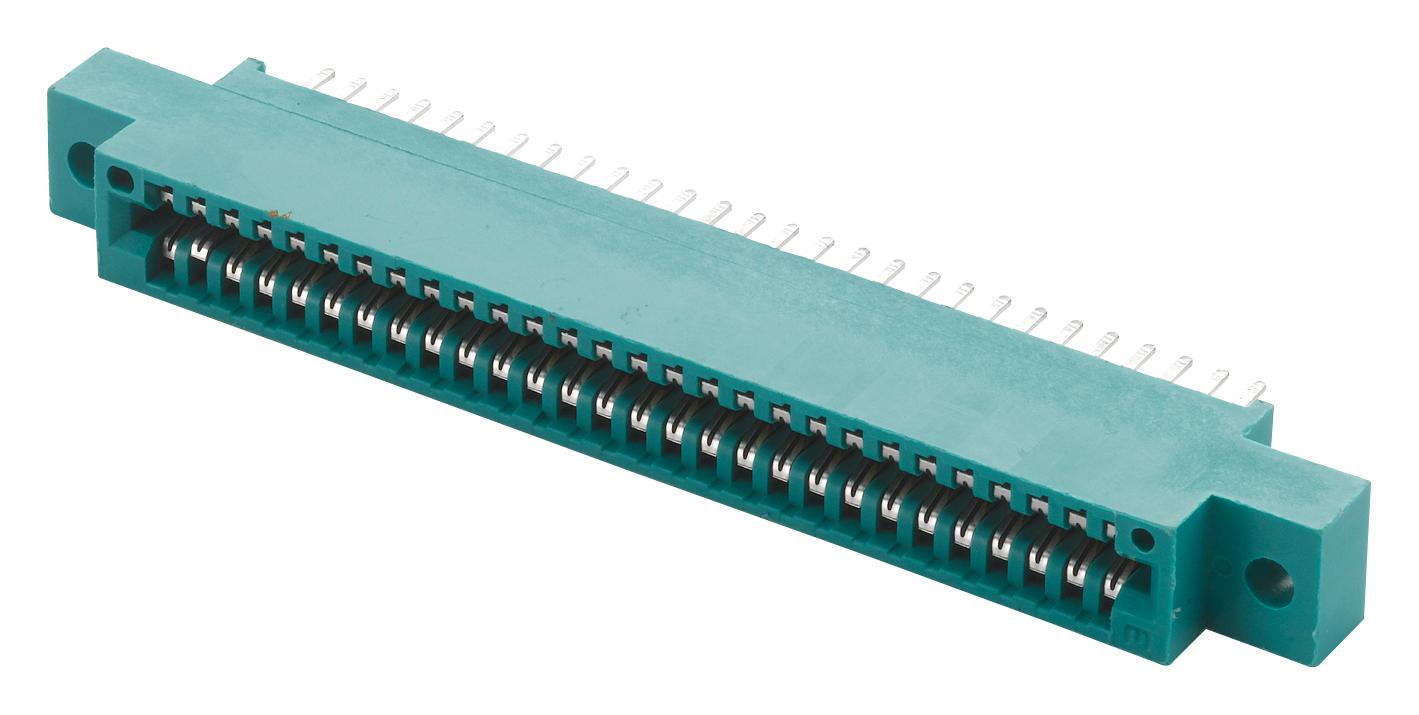

EDAC 345060520202 Card Edge Connector
This is a durable card edge connector designed for reliable electrical connections in industrial and electronic systems. It features a 0.100 inches (2.54 mm) pitch, with options for single or dual row configurations and various mounting preferences including flush or offset lugs. The insulation is UL 94V-0 thermoplastic polyester, and it offers a maximum current rating of 3 Amperes with dielectric withstand voltage of 1200 VAC rms. It accepts boards up to 0.062 inches (1.57 mm) thick and includes mounting holes with a 0.128 inches (3.25 mm) diameter for flexible installation. The connector accommodates polarizing keys for proper orientation, and pre-assembled card guides are also available. Ensuring durability and versatility, it complies with RoHS and UL standards, making it suitable for demanding industrial applications.
EDAC 345060520202 Card Edge Connector Specifications:
- Contact Spacing: 0.100" (2.54 mm)
- Row Spacing: 0.200" (5.08 mm)
- Number of Contacts: 60
- Tail Size: 0.030 x 0.018" (0.76 x 0.46 mm)
- Tail Length: 0.175" (4.45 mm)
- Insulator Material: UL 94V-0 thermoplastic polyester
- Contact Material: Copper Alloy with Tin Plating and Nickel Underplating
- Current Rating: 3 Amperes
- Dielectric Withstand Voltage: 1200 VAC rms
- Insulation Resistance: 5000 Megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: Max 60 oz (4.45 N) per contact pair
- Mounting Holes: Diameter 0.128" (3.25 mm)
- RoHS Compliant & UL Certified
- Accepts 0.062" (1.57 mm) Board Thickness
- Includes Polarizing Keys and optional Card Guides
Buy the Edac 345060520202 – Reliable Card Edge Connector for Industrial Applications
Enhance your electronic assembly with this high-quality card edge connector designed for durability and versatility. Featuring a 0.100 inch pitch and accommodating up to 60 contacts, it excels in industrial and electronic applications requiring secure, reliable connections. The connector's insulated thermoplastic body, high current handling, and compliance with RoHS and UL standards make it suitable for demanding environments. Its mounting options, polarizing keys, and optional guides simplify installation and ensure correct alignment. Purchase online today to streamline your project and benefit from dependable performance and quality.
Order your Edac Series 345060520202 card edge connector today and ensure reliable electrical connections in your industrial projects.
Frequently Asked Questions
Where can I buy EDAC 345060520202?
You can click on the BUY or RFQ button to purchase 345060520202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 345060520202?
You can download the 345060520202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 345060520202?
EDAC
