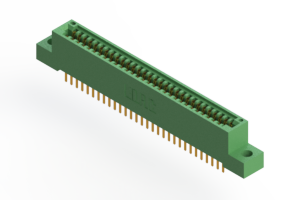

EDAC 345060520204 Card Edge Connector
This is a high-quality card edge connector with 0.100-inch (2.54mm) contact spacing, designed for reliable electronic connections. It features 60 contacts with P.C. tails measuring 0.030 x 0.018 inches (0.76 x 0.46 mm) and a tail length of 0.175 inches (4.45 mm). The connector supports various mounting options, including holes with a diameter of 0.156 inches (3.96 mm). Made from UL 94V-0 thermoplastic polyester and plated with gold and tin for enhanced durability and corrosion resistance, it is suitable for applications requiring high current and dielectric withstand voltage up to 1200V. The connector maintains excellent electrical performance with a contact resistance of 10 milliohms maximum, insulation resistance of 5000 megaohms minimum, and dielectric withstand voltage grade suitable for demanding environments, operating reliably between -40°C and +105°C with insertion and withdrawal forces optimized for ease of assembly and longevity.
EDAC 345060520204 Card Edge Connector Specifications:
- Contact Spacing: 0.100 inches (2.54mm)
- Number of Contacts: 60
- PC Tail Size: 0.030 x 0.018 inches (0.76 x 0.46 mm)
- Tail Length: 0.175 inches (4.45 mm)
- Mounting Hole Diameter: 0.156 inches (3.96 mm)
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplate
- Current Rating: Suitable for high current applications
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1200 V AC rms
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature Range: -40°C to +105°C
- Compliance: RoHS, UL Certified
Buy the Buy Edac Card Edge Connector Part Number 345060520204 Online
Purchase your Edac Series345 card edge connector online today to benefit from high-quality construction and reliable electrical performance. This connector offers 0.100-inch contact spacing for robust connections, with 60 contacts designed for durable and high-current applications. The incorporation of plated copper alloy contacts with gold and tin ensures longevity and corrosion resistance. Easy to mount with standard hole sizes, it is suitable for a range of electronic systems operating from -40°C to +105°C. Order now and improve your project’s connectivity with trusted, certified components.
Order your Edac Series345 Card Edge Connector today and ensure secure reliable connections for your electronic projects.
Frequently Asked Questions
Where can I buy EDAC 345060520204?
You can click on the BUY or RFQ button to purchase 345060520204 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 345060520204?
You can download the 345060520204 datasheet or visit the EDAC website for support.
Who is the manufacturer of 345060520204?
EDAC
