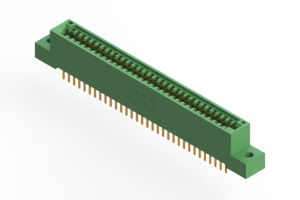

EDAC 345064520202 Card Edge Connector
The EDAC 345-064-520-202 card edge connector is designed for reliable connection of printed circuit boards. It offers a 0.100" (2.54mm) contact spacing and 0.200" (5.08mm) row spacing, accepting 0.062" nominal thickness P.C. board. The connector's high-profile insulator body and diverse termination options (P.C. tail, wire wrap, bends) make it versatile for various applications. Available in single or dual row configurations with flush or offset mounting lugs, this connector is ideal for industrial automation, telecommunications, and instrumentation systems. It is RoHS compliant and UL certified, ensuring adherence to industry standards.
EDAC 345064520202 Card Edge Connector Specifications:
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Contact Material: Copper Alloy
- Contact Plating: Gold Plating on mating area and Tin Plating on tails with Nickel underplating all over
- Current Rating: 3 amps
- Contact Resistance: 10 milliohms maximum
- Dielectric Withstanding Voltage: 1200 V AC rms at sea level between adjacent contacts
- Insulation Resistance: 5000 megaohms minimum
- Operating Temperature: -40°C to +105°C
- Insertion Force: 16 oz (4.45 N) maximum per contact pair when tested with .070” (1.78mm) thick gauge
- Withdrawal Force: 1 oz (0.28 N) minimum per contact pair when tested with .054” (1.37mm) thick gauge
