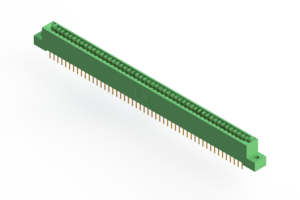

EDAC 346100520202 Card Edge Connector
This card edge connector features a 0.125-inch pitch and 100 contacts, with high-quality copper alloy contacts plated with gold and tin for durability. It accepts 0.062-inch thick P.C. boards and has a high profile insulator body measuring 0.600 inches. The connector offers multiple termination options, including P.C. tails, wire wrap, and bends, accommodating single or dual-row configurations. RoHS compliant and UL certified, it is designed for reliable electronic interconnections in industrial applications, ensuring excellent dielectric withstand voltage of 1500 V AC and high insulation resistance exceeding 5000 megaohms.
EDAC 346100520202 Card Edge Connector Specifications:
- Contact Spacing: 0.125 inches (3.18 mm)
- Number of Contacts: 100
- Contact Material: Copper Alloy
- Contact Plating: Gold on mating area, Tin on tails with Nickel underplating
- Tail Size: 0.025 inches square (0.64 mm²)
- Tail Length: 0.175 inches (4.45 mm)
- Mounting Holes: Diameter 0.128 inches (3.25 mm)
- Insulator Material: UL 94V-0 Thermoplastic Polyester
- Dielectric Withstanding Voltage: 1500 V AC rms
- Insulation Resistance: >5000 megaohms
- Temperature Range: -40°C to +105°C
- RoHS Compliant, UL Certified
Buy the Edac 346100520202 – Reliable Card Edge Connector for Industrial Applications
Purchase the Edac Card Edge Connector online today—designed for reliable electronic interconnections with high-quality materials. Featuring a 0.125-inch pitch, 100 contacts, and gold and tin plating, it is suitable for industrial applications. It accepts PCBs up to 0.062 inches thick and offers multiple mounting options, including pre-assembled guides and mounting holes. RoHS compliant and UL certified, this connector ensures excellent dielectric withstand voltage of 1500 V and high insulation resistance, supporting durable and efficient electronic systems.
Get Edac 346100520202 today—built for precision and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy EDAC 346100520202?
You can click on the BUY or RFQ button to purchase 346100520202 from an authorized EDAC distributor.
How do I troubleshoot issues or seek technical support for part 346100520202?
You can download the 346100520202 datasheet or visit the EDAC website for support.
Who is the manufacturer of 346100520202?
EDAC
